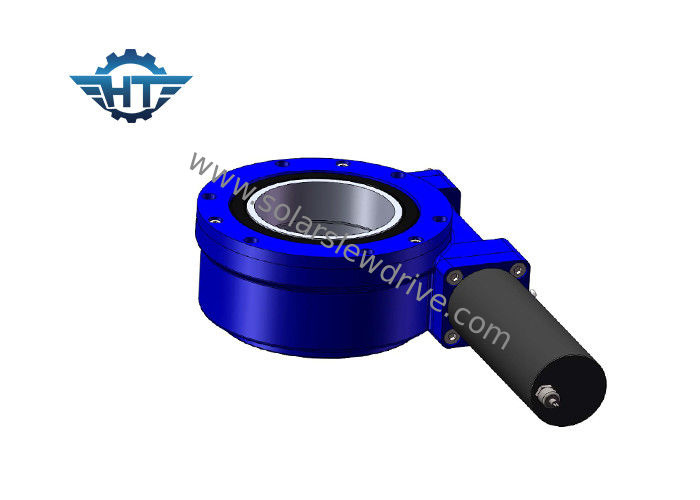

5 Inch 40% Transmission Efficiency Worm Gear Slew Drive With Hydraulic Motor For Truck Mounted Crane

5 Inch 40% Transmission Efficiency Worm Gear Slew Drive With Hydraulic Motor For Truck Mounted Crane

5 Inch 40% Transmission Efficiency Worm Gear Slew Drive With Hydraulic Motor For Truck Mounted Crane

Product Details:

Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE5

Payment & Shipping Terms:

Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 5 Inch Gear Ratio: 37:1
Efficiency: 40% Type: Horizontal Series
Application: Solar Energy OEM Service: Available
Place Of Origin: Changzhou, China Driver: 24 Voltage Gear Motors
High Light:

hydraulic slew motor

,

slewing gear

Description



People should take the hydraulic system into consideration; that is to say the required pressure and flow of the system. In addition, we should also take the connection dimensions, oil port into account. We can solve all this key factors by machining the suitable adapter, and select the perfect hydraulic motor to match with the suitable slewing drives.





The main advantages of worm drives are as follows:

1. Rotation 360 degrees

2. Connection of a driving motor from the left or right side

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping



Parameters of slewing drive



SE Model Performance Parameters
Model Ratio Rated Output Torque Tilting Torque Holding Torque Axial Load Radial Load Efficiency Precision Self-locking Weight
N.m N.m N.m kN kN degree Yes kg
1" 31:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3" 31:1 300 1500 7000 30 15 40% ≤0.1 Yes 9
5" 37:1 637.5 6000 9200 68 27 40% ≤0.1 Yes 14
7" 57:1 1750 10500 13200 132 58 40% ≤0.1 Yes 23
9" 61:1 4300 49900 30800 340 130 40% ≤0.1 Yes 44
12" 78:1 5600 54400 40560 480 190 40% ≤0.1 Yes 51
14" 85:1 6750 135000 44200 680 230 40% ≤0.1 Yes 62
17" 102:1 9460 203000 53040 980 390 40% ≤0.1 Yes 85
21" 125:1 16000 271000 65000 1600 640 40% ≤0.1 Yes 141
25" 150:1 21450 346000 89000 2400 950 40% ≤0.1 Yes 182
