ZSDE Series Solar Slew Drive Gearbox With Protection IP66 For CSP, CPV And PV Trackers

ZSDE Series Solar Slew Drive Gearbox With Protection IP66 For CSP, CPV And PV Trackers

    • ZSDE Series Solar Slew Drive Gearbox With Protection IP66 For CSP, CPV And PV Trackers
    • ZSDE Series Solar Slew Drive Gearbox With Protection IP66 For CSP, CPV And PV Trackers
  • ZSDE Series Solar Slew Drive Gearbox With Protection IP66 For CSP, CPV And PV Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: ZSDE3

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: 3 Inch Gear Ratio: 31:1
    Efficiency: 40% Type: Two Directions Mounted
    Application: Csp & Cpv OEM Service: Available
    Place Of Origin: Changzhou, China Driver: Stepper Motors
    High Light:

    solar tracker drive

    ,

    slewing gear

    ZSDE Series Solar Slew Drive Gearbox With Protection IP66 For CSP, CPV And PV Trackers





    Description

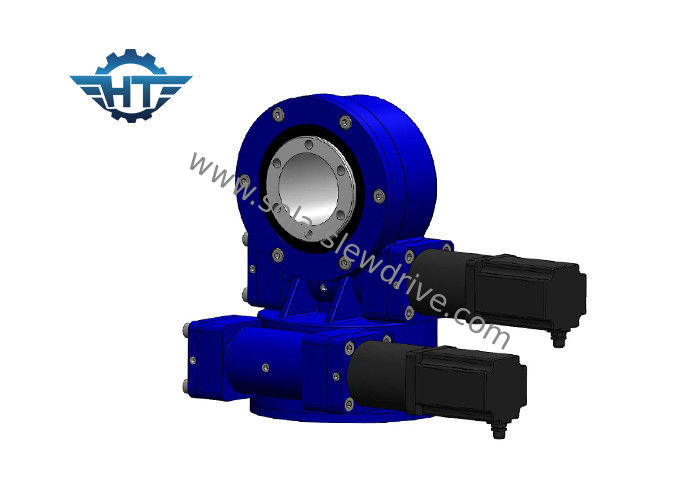

    Dual axis slew drive (ZSDE type) - for csp and cpv
     Concentrated solar power systems, or CPV for short, generate solar power by using mirrors or lenses to concentrate a largearea of sunlight, or solar thermal energy, onto a small area. Electricity is generated when theconcentrated light is converted to heat, which drives a heat engine connected to an electrical powergenerator or powers a thermochemical reaction
    The ZSDE series designing is absorbs the advantages of ZVE and ZSE. The Azimuth and Elevation 3D direction rotating at the same time.

    Reliability
    Our ZSDE dual-axis slewing drives are assured for a 30-year field life time of precise 3D positioning. SDE drives create an efficient and reliable solution in a single drive. We qualify all of our components and raw materials using standards set by ISO 9001, CE certifications to maximize field life.

    Performance
    Our slew drives use patented hourglass worm technology to give maximum control and movement support. Our worm gears engage 5 to 11 teeth on the pitch line of the ring gear from the hourglass screw, which is higher tooth engagement than standard worms, giving the gearbox greater stability and strength. Learn more about hourglass technology.

    By adoping hourglass worm, the drives have the following features:

    1) Higher output torque and holding load
    2) Top tracking precision
    3) Strong corrosion resistance and sealing effective

    Parameters of SDE Series



    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
    5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
    7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
    9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
    12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
    14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
    17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705


    How to choose the proper size of slewing drives?

    Choosing a proper size of the slewing drives in order to avoid from not only performance lack or performance surplus is play an important role in achieving cost effective solutions.

    Please give us the following information in order to select a suitable slewing drive:

    1. the application
    2. the output toque required. If you do not have a clear idea of that data, just tell us the load, for example, the weight of panels and the mounting brackets on our slewing drive.
    3. the load dimensions and the biggest wind in your area in the past 10 years which are used to calculate if the drive we recommended could bear the maxium load when there comes the big wind.
    4. the output speed you required which will help us to recommend the suitable motors for you.
    5. other informations such as backlash, IP grade demand etc
