CE Mark SE14 High Load Hydraulic Slew Drive Matched With Hydraulic Gear Motor For Cranes

CE Mark SE14 High Load Hydraulic Slew Drive Matched With Hydraulic Gear Motor For Cranes

    • CE Mark SE14 High Load Hydraulic Slew Drive Matched With Hydraulic Gear Motor For Cranes
    • CE Mark SE14 High Load Hydraulic Slew Drive Matched With Hydraulic Gear Motor For Cranes
  • CE Mark SE14 High Load Hydraulic Slew Drive Matched With Hydraulic Gear Motor For Cranes

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE14"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 280~504 / pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: SE14"
    Gear Ratio: 85:1 Rated Output Torque: 6550Nm
    Holding Torque: 68000Nm Tilting Torque: 54200Nm
    Efficiency: 40% Standard Color: RAL 9006
    Axial Load: 680 KN Radial Load: 230 KN
    High Light:

    solar tracker drive

    ,

    slewing gear

    Product description



    Type: SE14 inch slewing drive



    Features:



    1. Tooth type: Helical tooth
    2. Bearing load: light load
    3. Drive type: Motor drive

    4. Module: 5/3.75
    5. Number of worm shafts: 1
    6. Gear Ratio: 85: 1
    7. Efficiency: 40%
    8. Self-locking gears: YES
    9 Weight: 63 kg



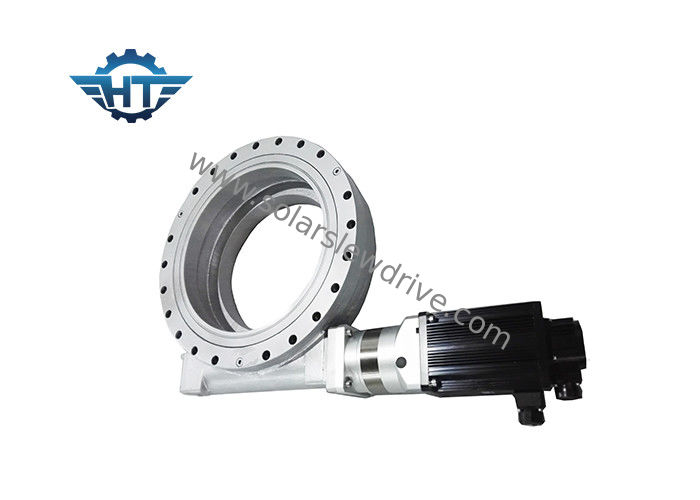

    CE Mark SE14 High Load Hydraulic Slew Drive Matched With Hydraulic Gear Motor For Cranes  CE Mark SE14 High Load Hydraulic Slew Drive Matched With Hydraulic Gear Motor For Cranes  CE Mark SE14 High Load Hydraulic Slew Drive Matched With Hydraulic Gear Motor For Cranes



    Tilting Moment Torque: This torque is the gravity load multiplied by distance between the position of load and the center of slewing bearing. If the actual torque is greater than the rated tilting moment torque, slewing drive will be overturned.

    Radial load: The load vertical to the axis of slewing bearing

    Axial load: The load parallel to the axis of slewing bearing

    Holding torque: It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque, it is also seen as broken torque.

    Self-locking: Only when there is load, the slewing drive is not able to reverse rotate and thus called self-locking.



    Technical Data





    SE Model Performance Parameters
    Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Effeciency Precision (degree) IP Working Temp.(℃) Self-locking Weight (kg)
    1" 400 1000 1800 22 12 28:1 43% ≤0.1 66 -30~+120 Yes 6
    3" 600 1500 3000 30 16 31:1 43% ≤0.1 66 -30~+120 Yes 8
    5" 800 6000 4700 68 27 37:1 43% ≤0.1 66 -30~+120 Yes 12
    7" 2000 13500 7100 132 58 57:1 43% ≤0.1 66 -30~+120 Yes 21
    9" 4400 45000 30800 340 130 61:1 43% ≤0.1 66 -30~+120 Yes 49
    12" 5800 54400 40560 480 190 78:1 43% ≤0.1 66 -30~+120 Yes 61
    14" 6550 68000 54200 680 230 85:1 43% ≤0.1 66 -30~+120 Yes 63
    17" 9400 135600 65040 980 390 102:1 43% ≤0.1 66 -30~+120 Yes 105
    21" 16000 203400 81000 1600 640 125:1 43% ≤0.1 66 -30~+120 Yes 149
    25" 21000 271160 89000 2400 950 150:1 43% ≤0.1 66 -30~+120 Yes 204




    Remark: For more detailed dimensions and parameters, please refer to our sales drawings.
