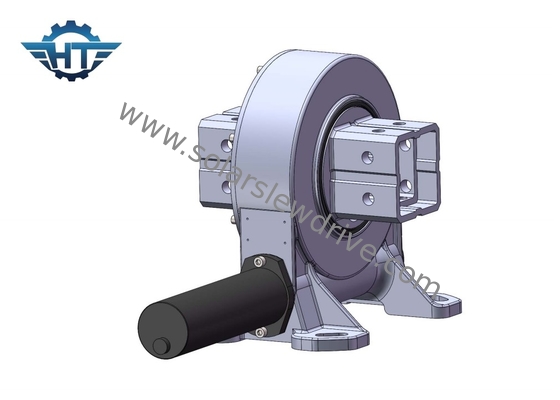

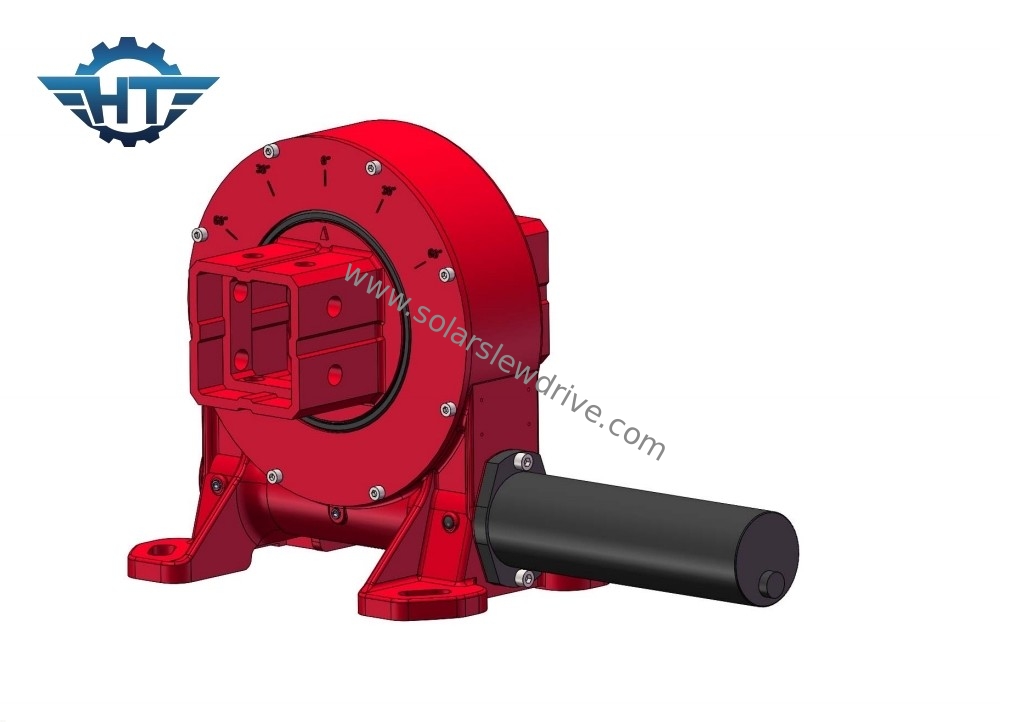

9" Vertical Solar Tracker Slew Drive Gearbox For Single Sun Tracking System

9" Vertical Solar Tracker Slew Drive Gearbox For Single Sun Tracking System

  • 9" Vertical Solar Tracker Slew Drive Gearbox For Single Sun Tracking System
  • 9" Vertical Solar Tracker Slew Drive Gearbox For Single Sun Tracking System
9" Vertical Solar Tracker Slew Drive Gearbox For Single Sun Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Brand Name: Hangtuo Application: Single Sun Tracking System
Self-lock: Yes Axis Rotation Range: 360°
IP Rating: IP66 Noise Level: ≤65dB
Operating Temperature: -20℃~+80℃ Voltage: 24V
High Light:

9" solar tracker slew drive

,

vertical solar tracker slew drive

,

vertical slewing drive for solar tracking system

9" Vertical Solar Slew Drive Gearbox For Single Sun Tracking System



Solar Slew Drive Gearbox Description



A slewing gearbox, also known as a slewing drive or slewing ring gearbox, is a mechanical device used to rotate or slew heavy loads in various applications. It is commonly employed in machinery such as cranes, excavators, wind turbines, and solar tracking systems. The main purpose of a slewing gearbox is to provide controlled rotation and support for the load. It consists of several key components



VE Single Axis Slewing Drive Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% Yes 12
5" 37:1 800 5000 9200 16 27 40% Yes 18
7" 57:1 1750 7000 13200 34 58 40% Yes 32
8" 51:1 2250 11200 20400 50 80 40% Yes 28
9" 61:1 2250 16000 30800 60 130 40% Yes 52
12" 78:1 4300 25000 40560 77 190 40% Yes 65
14" 85:1 5600 48000 44200 110 230 40% Yes 88
17" 102:1 6750 67000 53040 142 390 40% Yes 135
21" 125:1 16000 89000 65000 337 640 40% Yes 192
25" 150:1 21450 112000 89000 476 950 40% Yes 251



Applications



Observatory and Tracking Systems: Slewing drives are employed in observatories and tracking systems for astronomical research, satellite tracking, and space exploration. They enable the precise movement and tracking of telescopes, antennas, and tracking devices.

Conveyor Systems: Slewing drives are utilized in conveyor systems to enable the rotation and positioning of conveyor belts or rollers. They facilitate the smooth transfer of materials in industries such as mining, manufacturing, and logistics.

Bridge and Tunnel Construction: Slewing drives are used in bridge and tunnel construction projects. They enable the controlled rotation and movement of heavy bridge sections or tunnel boring machines, ensuring precise alignment and assembly.

Entertainment and Stage Equipment: Slewing drives find applications in the entertainment industry, such as stage platforms, rotating stages, and kinetic sculptures. They enable dynamic and eye-catching movements, enhancing performances and visual effects.

These are just some of the many diverse applications of slewing drives. Their versatility, reliability, and ability to handle heavy loads make them indispensable components in various industries and sectors.
