Double Enveloping Worm Gear Slew Drive For Solar Panel Tracking System

Double Enveloping Worm Gear Slew Drive For Solar Panel Tracking System

  • Double Enveloping Worm Gear Slew Drive For Solar Panel Tracking System
  • Double Enveloping Worm Gear Slew Drive For Solar Panel Tracking System
Double Enveloping Worm Gear Slew Drive For Solar Panel Tracking System
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 200~380 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Slewing Range: ±60° /360° Material: 42CRMN Or 50Mn
Application: Solar Power System Warranty: 10 Years
Color: Customer Required Size: 3 Inch - 25 Inch
Motor: 24VDC/220VAC Feature: Long Life
High Light:

CSP worm gear slew drive

,

50Mn worm gear slew drive

,

CSP Double Enveloping slew drive gearbox

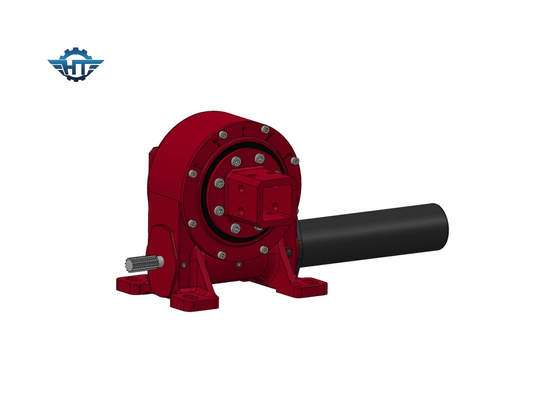

Double Enveloping Worm Gear Slew Drive With Geared Motor For Solar Panel Tracking System



Worm Gear Slew Drive Description



Vertical double enveloping worm gear slew drive with planetary gearbox's applications mainly for solar panel tracking system, especially in horizontal single axis solar tracking system. It is also widely used in CSP, such us fresnel, heat tower, parabolic etc.



Horizontal double enveloping worm gear slew drive, like its name, is installed horizontally, it is mainly applied in winch crane, slewingdeck crane, crane winch design, excavator swing drive. Our unique small backlash slewing drive can also be used in high precision fields such us antenna, satellite, slewing table, dishes......



The planetary gear reduction gearbox working principle makes itself for solar tracker bear a big radial load due to the proportionate distribution of torque. What's more, our slewing drives has hydraulic motor configurations. We have all series slew gearbox size meet customers' different demand.



Features



1. Rotate  ±60°, hard stop inside to ensure system safety

2. Connect a driving motor from the left, right side or in the middle

3. The clearance is already set by the producer before factory, so no need to adjust it when installation

4. Grease had been filled before factory, just need refill each 5 years

4. Simple installation and low maintenance

5. Compact design and space saving

6. The gear is self-locking, so no need of addtional brake

7. Easy and fluent method of starting and stopping

8. High tilting torque and backholding torque to improve safety under harsh environment



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Packaging



Inner Packaging: anti-rust plastic film ; vacuum plastic bags.

Outer Packaging: hard carton; wooden case ; wood pallet.

Shipping Term: by express; by air; by land; by sea.
