Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Current: | 7.5A | Product Name: | Vertical Solar Slew Drive |
|---|---|---|---|
| Surface Treatment: | Plastic Spray | Certificates: | ISO9001, CE |
| Function: | Increase Torque | IP Grade: | IP66 |
| Self Locking: | Reverse Self Lock | Usage: | Mini Solar Trackers |
| High Light: | high load solar tracker slew drive,reliable solar tracker slew drive,12" slew drive for solar tracker |
||

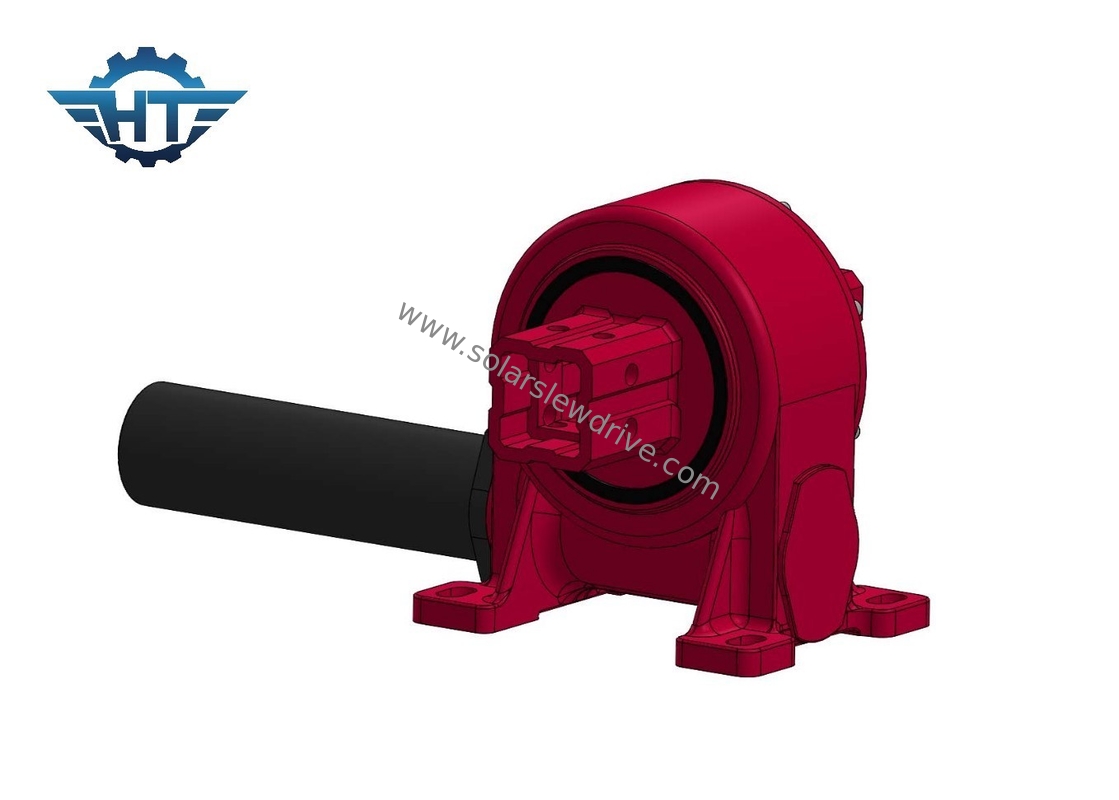

High Load Capacity 12" Slew Drive Gearbox for Reliable Solar Tracking System
9'' Slew Drive Gearbox Description
Worm gear slewing drives are typically constructed with materials that offer corrosion resistance, making them suitable for outdoor applications. The housing is designed to protect internal components from environmental factors, ensuring longevity and durability. This durability is crucial for the reliable operation of solar tracking systems in various weather conditions.
To minimize maintenance requirements, many worm gear solar tracking slewing drives are designed to be self-locking. This means that the worm gear inherently resists back-driving, reducing the need for frequent adjustments or lubrication. The maintenance-free operation contributes to the overall reliability of solar tracking systems, especially in remote or inaccessible locations.
Parameters of VE Series Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Features
Low Backlash:
Slewing drives are engineered to minimize backlash, ensuring precise and smooth motion control.
Easy Installation:
The design of slewing drives often allows for easy installation and integration into various systems.
Maintenance-Free Options:
Some models come with maintenance-free features, reducing the need for regular inspections and lubrication.
Applications
Mining Equipment:
In mining applications, slewing drives are used in equipment like excavators and conveyor systems to enable controlled movement and positioning.
Medical Equipment:
Some medical imaging devices and robotic systems use slewing drives for controlled rotational movement.
Military and Defense Applications:
Slewing drives are employed in various military and defense systems, such as radar systems and surveillance equipment.
Slewing drives play a crucial role in a wide range of applications where controlled and precise rotational movement is required, especially under heavy loads and varying environmental conditions.
