Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 248~380/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Self Lock: | Yes | Noise Level: | ≤65dB |
|---|---|---|---|
| Application: | PV Solar Tracking System | Protection Level: | IP66 |
| Speed: | 0~1 Rpm | Hall Sensors: | Optional |
| Motor: | 24VDC/220VAC | Package: | Plywood Case |
| High Light: | solar tracker slew drive single axis,electric motor solar tracker slew drive,pv slew drive for solar tracker |
||

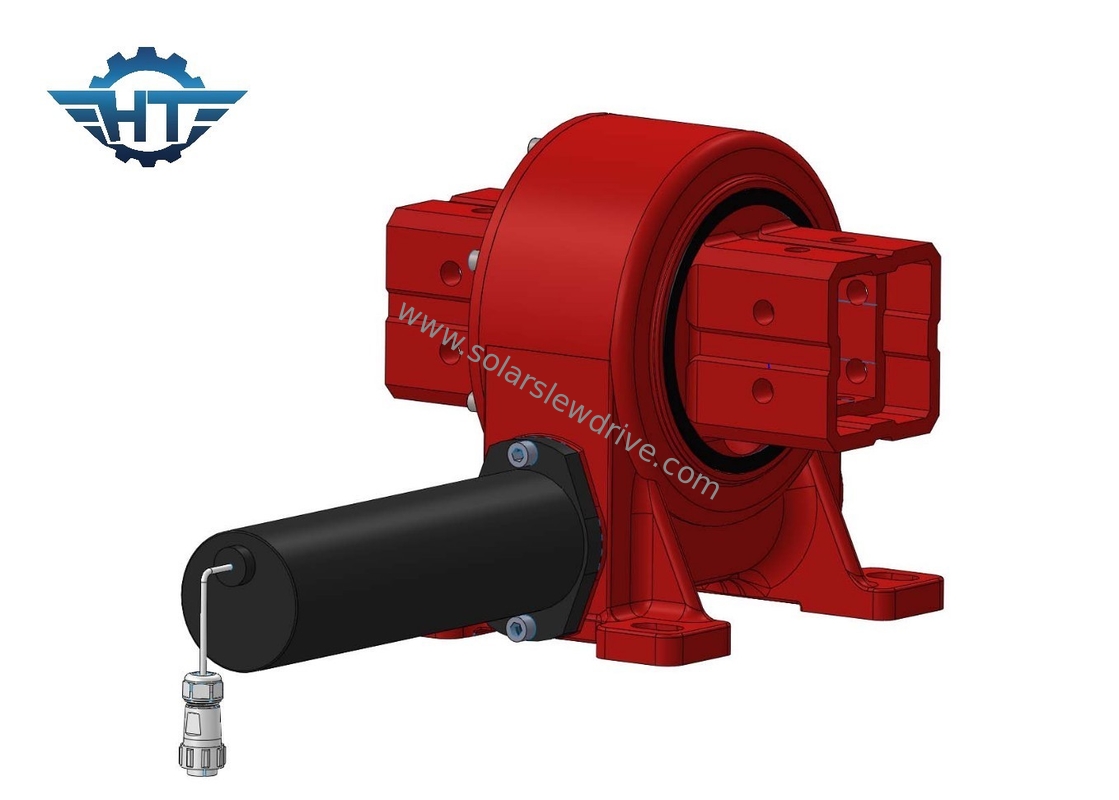

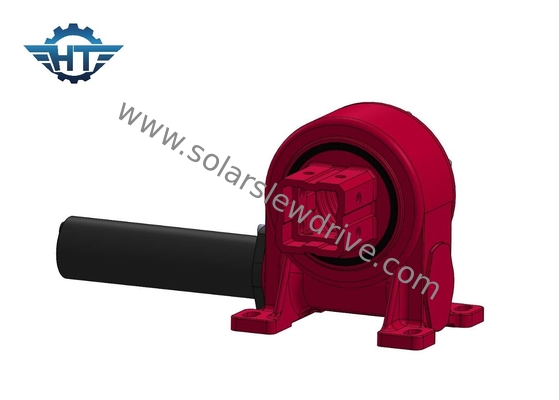

Single Axis Slew Drive With Electric Motor PV Solar Tracking System
Single Axis Slew Drive Description
Maintenance-Free Solar Tracker Gearbox: Known for its maintenance-free operation, the solar tracker slewing drive features sealed and lubricated gear mechanisms. This design minimizes the need for regular maintenance, reducing downtime and associated costs. The drive's sealed housing protects internal components from environmental factors, ensuring a long operational lifespan without compromising performance.
Performace of VE Series Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Applications
Slewing drive application are usually found in such as: wind turbines, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables. The versatility, robustness, and ability to handle heavy loads make slewing drives suitable for a wide range of applications. They offer precise control, durability, and reliability, making them an integral component in many industries that rely on controlled rotation or slewing motion.
