Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE9" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 248~380/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Model: | 9 Inch | Backlash: | ＜0.15° |
|---|---|---|---|
| IP Rating: | IP66 | Noise Level: | ≤65dB |
| Operating Temperature: | -30℃~+80℃ | Motor Rated Current: | 7.5A |
| Motor Rated Torque: | 360Nm | Voltage: | 24V DC |
| High Light: | solar tracker rotary drive single axis,electric motor solar tracker rotary drive,9 inch solar tracker slew drive |
||

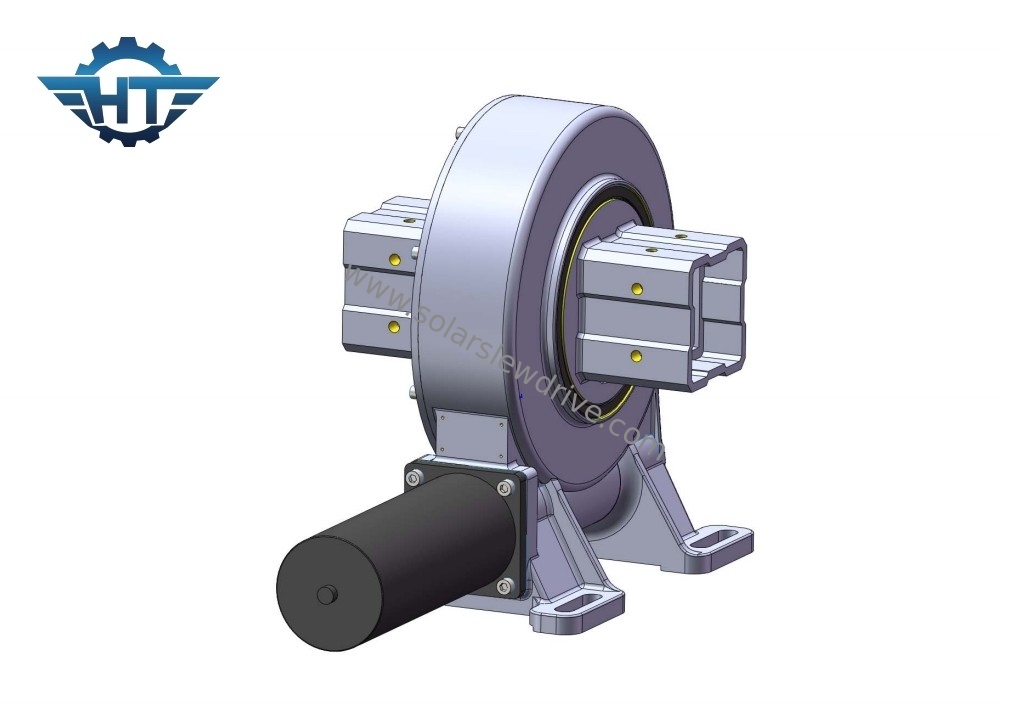

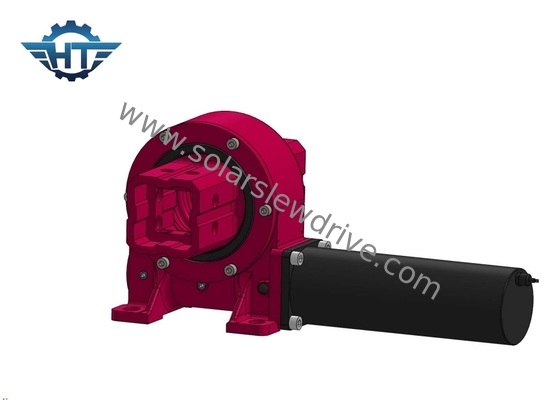

Single Axis Electric Motor Slew Drive, 30 Year Life, PV Solar Tracking System
Single Axis Slew Drive Description
A slew drive, also known as a slewing drive, is a compact and versatile gearbox mechanism used in various applications to provide rotational movement or positioning control. It consists of a combination of a gear set and a drive motor, typically an electric motor or a hydraulic motor.
The main purpose of a slew drive is to enable the rotation of a load around a fixed axis or to track the movement of a target. It offers a high torque output and the ability to withstand heavy axial and radial loads. Slew drives are commonly used in machinery and equipment that require precise and continuous rotation, such as solar tracking systems, cranes, wind turbines, satellite dishes, excavators, and industrial turntables.
Performace of VE Series Slewing Drives
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Applications
Construction and Heavy Equipment: Slewing drives are utilized in construction machinery like cranes, excavators, and drilling rigs. They facilitate the rotation of the equipment, allowing for efficient positioning and movement.
Wind Turbines: Slewing drives play a crucial role in the yaw and pitch control systems of wind turbines. They enable the adjustment of the turbine's orientation to optimize wind capture and ensure the rotor blades are properly aligned with the wind direction.
Industrial Equipment: Slewing drives are employed in various industrial applications, such as conveyor systems, material handling equipment, and rotating platforms. They enable smooth and controlled rotation, enhancing productivity and operational efficiency.
Robotics and Automation: Slewing drives are utilized in robotic systems and automation equipment that require precise and controlled rotational movements. They are commonly used in robotic arms, positioning systems, and automated assembly lines.
Aerospace and Defense: Slewing drives find applications in the aerospace and defense sectors. They are used in satellite tracking systems, radar systems, missile launchers, and other military equipment that require accurate and reliable rotation.
Marine and Offshore: Slewing drives are employed in marine and offshore applications, including ship cranes, offshore drilling platforms, and tidal energy systems. They provide the necessary rotational motion for various operations in these environments.
