Angle: | ±60° | Application: | Solar Tracking System |
---|---|---|---|
Current: | 7.5A | Material: | Cast Iron |
Power: | 126W | Product Name: | Vertical Solar Slew Drive |
Protection Level: | IP66 | Surface Treatment: | Plastic Spray |
High Light: | 9'' slew gear box,solar tracking system slew gear box,9'' slew drive gearbox |

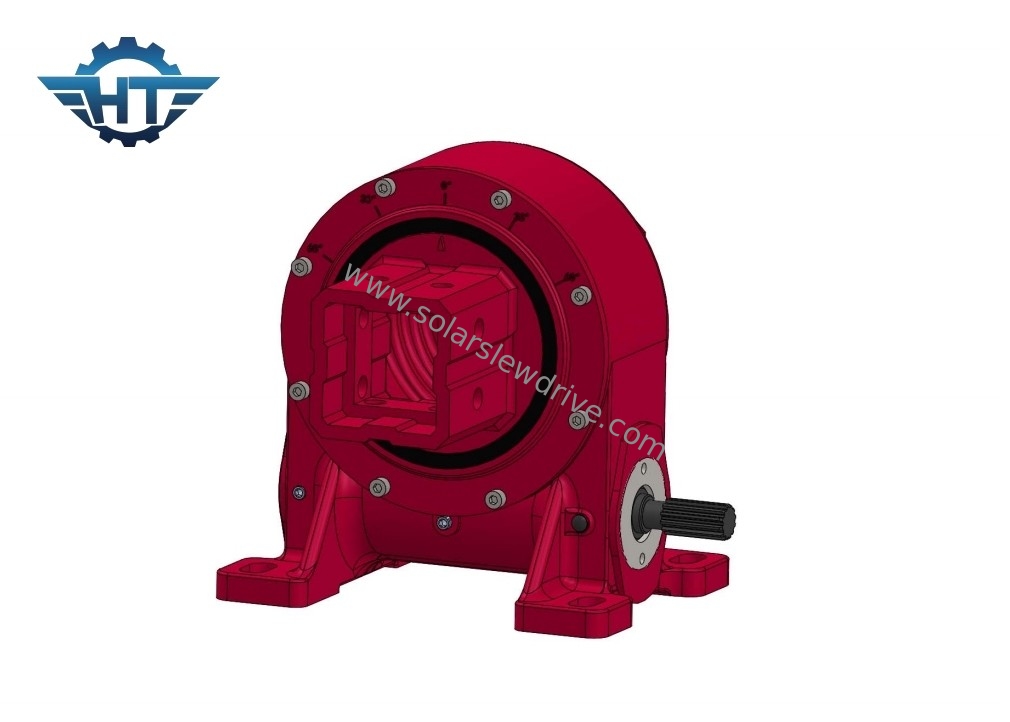

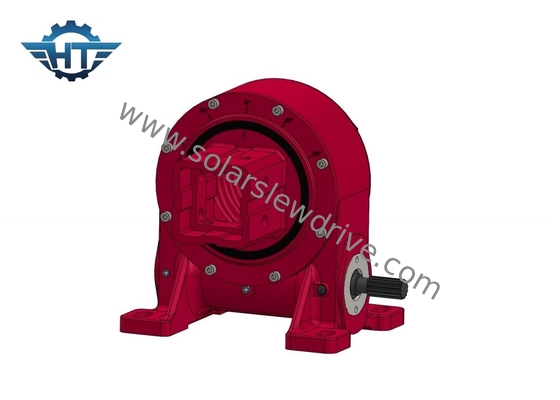

9'' Slew Drive Gearbox with 12x12 Main Torque for Solar Tracking System
9'' Slew Drive Gearbox Description
Solar tracking slewing drives are mechanical devices specifically designed for solar energy systems. They facilitate the movement and positioning of solar panels or mirrors to maximize their exposure to the sun throughout the day. These drives consist of a gearbox and a rotating mechanism that enables precise and continuous tracking of the sun's movement.
Parameters of VE Series
Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Advantages
1. High backholding torque to improve the solar tracking system's safety
2. Hard stop inside in case the mulfunctioning of the software control system
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function
Remark: The above dimensions and parameters may be updated or adjusted, for more detailed dimensions and parameters, please refer to our sales drawings.
Applications

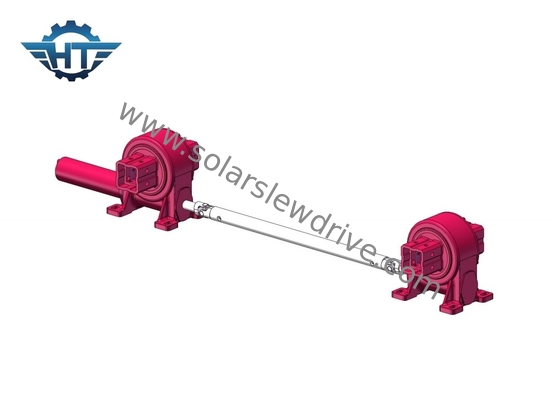

Solar Tracking Systems: Slewing drives are extensively used in solar tracking systems, which aim to maximize solar energy capture by orienting solar panels or mirrors toward the sun. The slewing drive enables precise and continuous tracking of the sun's movement, optimizing energy output.
