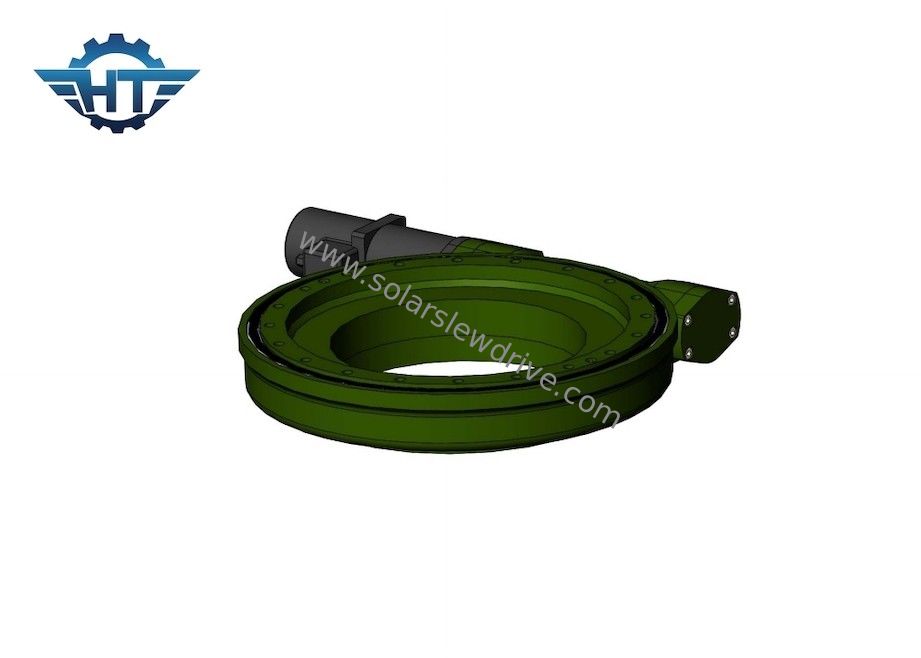

IP66 Hourglass Worm Gear Slew Drive Gearbox For High Torque Solar Tracking System

IP66 Hourglass Worm Gear Slew Drive Gearbox For High Torque Solar Tracking System

  • IP66 Hourglass Worm Gear Slew Drive Gearbox For High Torque Solar Tracking System
  • IP66 Hourglass Worm Gear Slew Drive Gearbox For High Torque Solar Tracking System
IP66 Hourglass Worm Gear Slew Drive Gearbox For High Torque Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE12
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Material: QT Tilting Torque: 54.4 KNm
Holding Torque: 40.5 KNm Application: High Torque Solar Tracking System
Installation Site: Ground Packaging: Plywood
Self-lock: Yes Motor: Electric Motor
High Light:

Electric Motor solar Slew Drive Gearbox

,

IP 66 Hourglass Slew Drive Gearbox

,

High Torque Solar Slew Drive Gearbox

IP66 Hourglass Slew Drive Gearbox For Low Speed And High Torque Solar Tracking System



Hourglass Slew Drive Description



Slewing drives can be used in applications that do circular motions, such as crane turntables, rotating machinery, and more. This product can be widely used in the field of construction machinery represented by aerial work vehicles and truck cranes, the field of new energy represented by solar photovoltaic power generation and wind power generation, and other fields of automation, machine tool manufacturing, aerospace communications, etc. It can be said that this product The market potential is huge.



Parameters of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Applications



The slewing ring bearings can be used for a wide range of applications. The areas of deployment range from excavators and cranes, opencast mining and wind turbines, to antenna. Other fields of application include engineering and solar tracking system.



Photovoltaic power generation field
Photovoltaic power generation system is an important and widely used field of slewing drive. The solar photovoltaic system using the slewing drive device as the rotating part can make the system track the different positions of the sun in the day by changing the azimuth and pitch angles, and let the solar cells The board is at the best receiving angle.
