Vertical Envelope Slew Gearbox Motor For Solar Tracker

Vertical Envelope Slew Gearbox Motor For Solar Tracker

  • Vertical Envelope Slew Gearbox Motor For Solar Tracker
  • Vertical Envelope Slew Gearbox Motor For Solar Tracker
Vertical Envelope Slew Gearbox Motor For Solar Tracker
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: VE7"
Gear Ratio: 57:1 Max Rated Output Torque: 5060 Nm
Holding Torque: 40,000 Nm Tilting Torque: 5,000 Nm
Efficiency: 40% Standard Color: RAL 9006
High Light:

Vertical Envelope slew gearbox

,

VE7 slew gearbox

,

Self locking slew drive gearbox

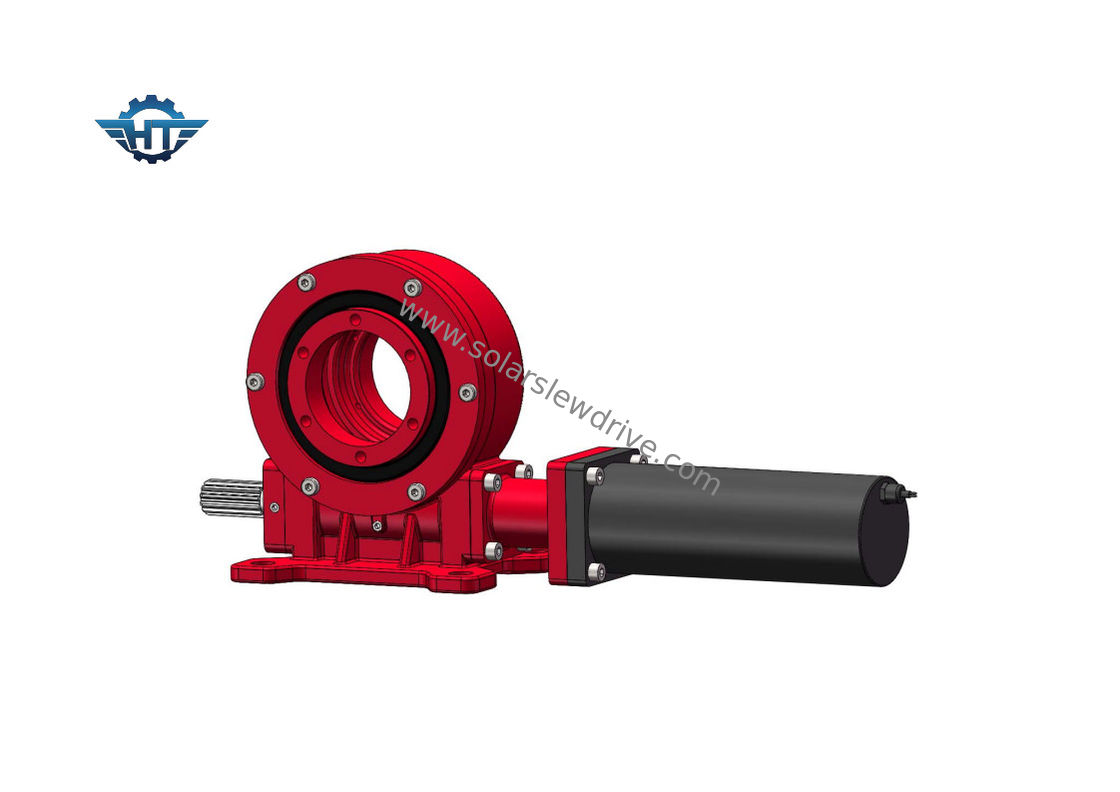

CE Vertical Envelope Slew Drive Worm Gearbox Motor For Solar Tracker







Custom Worm Gear Slewing Drive Description



Our slewing drive can simultaneously bear the effects of axial force, radial force and tilting moment, since the core component of the slewing drives adopt envelop wrom and multi tooth contact. Compared with traditional slewing products, our products have the characteristics of simple installation, easy maintenance, and saving installation space to a greater extent.



Advantages



1. High backholding torque to improve the solar tracking system's safety

2. 360 degree or +60~-60 degree rotating range, or as customers' request

3. Enveloping worm drive inside

4. Multi tooth contact to ensure high load

5. Self-locking function



Vertical Envelope Slew Gearbox Motor For Solar Tracker 0



Technical Data of VE Slewing Drive



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.



Glossary of Key Paramaters



Tilting Moment Torque: This torque is the gravity load multiplied by distance between the position of load and the center of slewing bearing. If the actual torque is greater than the rated tilting moment torque, slewing drive will be overturned.

Radial load: The load vertical to the axis of slewing bearing

Axial load: The load parallel to the axis of slewing bearing

Holding torque: It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque, it is also seen as broken torque.

Self-locking: Only when there is load, the slewing drive is not able to reverse rotate and thus called self-locking.
