Providing Innovative and Cost-effective Slewing Drives
 |
| Certification: | CE, ISO9001 |

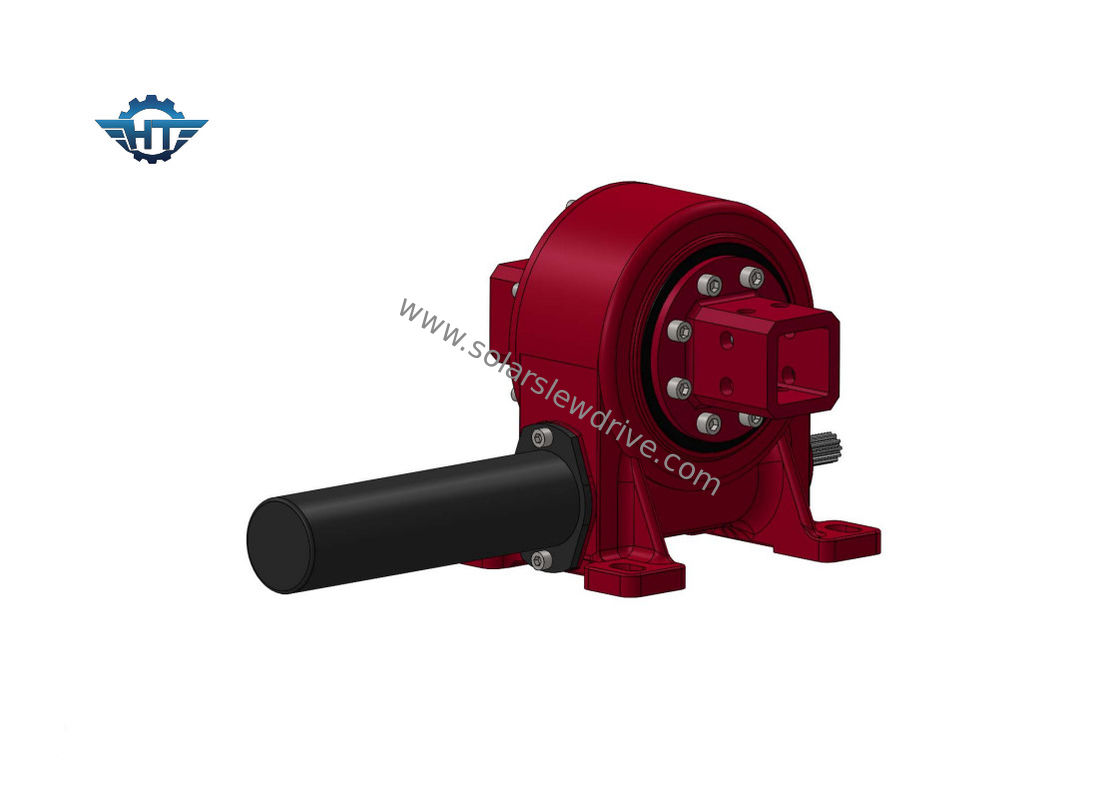

| Model Number: | VE7 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Place Of Origin: | China | Brand Name: | Hangtuo |
|---|---|---|---|
| Material: | 50Mn, 42CrMo | Model: | VE7 |
| Gear Ratio: | 57:1 | Output Torque: | 5060 Nm |
| Holding Torque: | 40 KNm | Tilting Torque: | 5 KNm |
| High Light: | worm gea slewing drive reducer,VE7 slewing drive reducer,axis solar tracking slew drive |
||
Our VE slewing drives are mainly used for PV, STP, CSP axis solar tracking systems.
We also have multiple types of slewing drives which are widely used for construction applications, such as truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications, heavy load transporters, bridge inspection equipment, telescopic working platform, basket rotator requirements, yacht crane, cement mixer, excavator, etc.
We can also provide multiple sizes of hydraulic motors, DC motors, stepper motors and servo motors to match with slewing drives. Our products have been exported to all over the world.
Features
1. Strong holding torque and tilting torque
2. Adopt enveloping worm drive
3. Drive larger load for using multi tooth contact
4. Better static self-locking function
Installation Instructions
Horizontal installation & Vertical installation, see below picture.
Tow single sleiwng drives can achieve dual axis slewing drive systems.
One dual axis slewing drive can achieve dual axis slewing drive systems.
One slewing drive with one linear actuator can also achieve dual axis slewing drives.
Technical Sheet of VE Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Our Packaging & Transport
All slew drives will be packed with fumigration-free wooden case.
Support sea transportation , air transportation, road transportation and express such as TNT, DHL,UPS, EMS, Fedex, etc for sample and small cargo transportation.
