Place of Origin: | China |
Brand Name: | HangTuo |
Certification: | CE, ISO9001 |
Model Number: | 6 inch |
Minimum Order Quantity: | 1 piece |
---|---|
Price: | USD 280~330/ pc |
Packaging Details: | plywood box |
Delivery Time: | 15~45 days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 2000 pcs per month |
Worm Gear Material: | 50Mn, 42CrMo | Model: | 6 Inch |
---|---|---|---|
Gear Ratio: | 31:1 | Efficiency: | 40% |
Precision: | ≤ 0.1 | Gearbox Motor: | 12/24V Motor |
Color: | Requested | Type: | Vertical Single |
High Light: | Hourglass slew drive gearbox,6 inch slew drive gearbox,Hourglass solar slew drive |

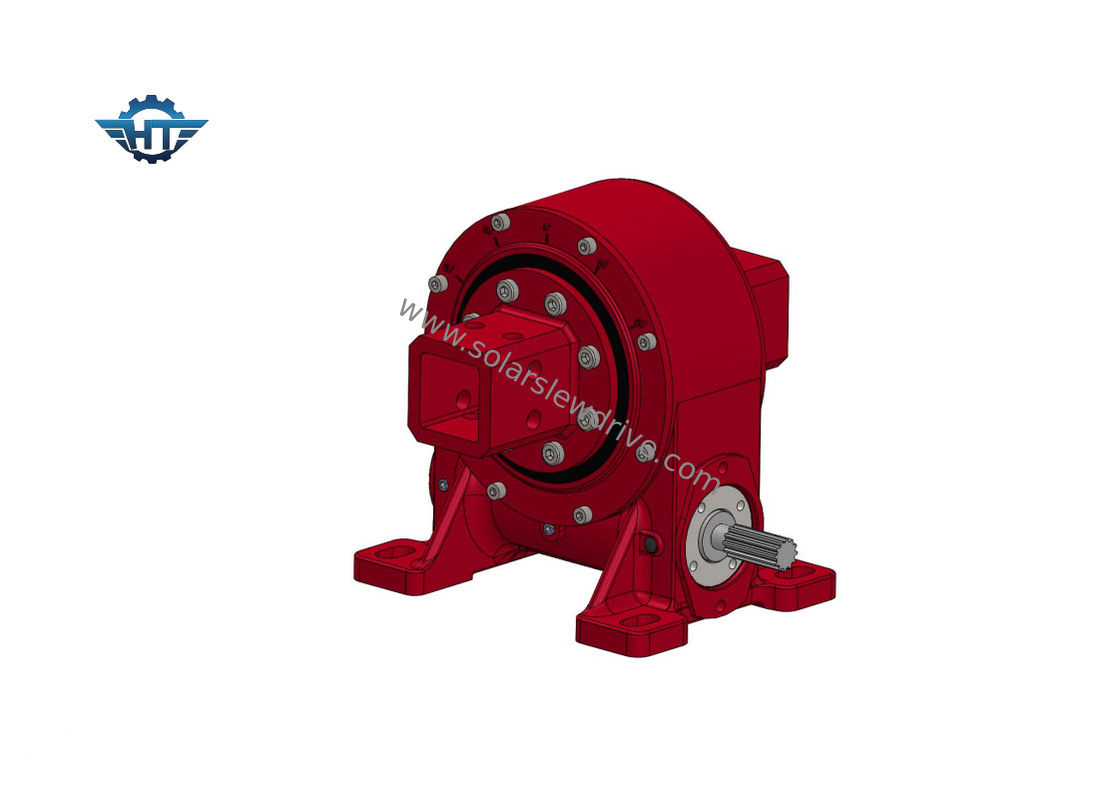

Vertical Single Axis Hourglass Worm Gearbox Slewing Drive For Solar Tracking System
Solar Slew Drive Description
A solar slewing drive is a compact design worm gearbox which is widely used in solar tracking systems. It features with self locking, small backlash, high back holding torque, easy installation, maintenence free etc.
Technical Data of VE Series Slewing Drives
Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | ≤0.1 | Yes | 12 |
5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 18 |
7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 32 |
8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | ≤0.1 | Yes | 28 |
9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | ≤0.1 | Yes | 52 |
12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 65 |
14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 88 |
17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 135 |
21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 192 |
25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 251 |
Advantages
1. Rotation 360 degrees
2. Connection of a driving motor from the left or right side,
3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory
4. Simple installation and low maintenance
5. Rational space utilization
6. Self-locking
7. Easy starting and stopping
8. High accuracy
