3 Inch Vertical IP66 Slew Drive Gearbox Heavy Loading For Solar Panel Tracking System

3 Inch Vertical IP66 Slew Drive Gearbox Heavy Loading For Solar Panel Tracking System

  • 3 Inch Vertical IP66 Slew Drive Gearbox Heavy Loading For Solar Panel Tracking System
  • 3 Inch Vertical IP66 Slew Drive Gearbox Heavy Loading For Solar Panel Tracking System
3 Inch Vertical IP66 Slew Drive Gearbox Heavy Loading For Solar Panel Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE6
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~300/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Place Of Origin: Changzhou, China Function: High Backholding Torque
Protection: IP66, Enclosed Type: VE6
Material: 42CrMo Or 50Mn Warranty: 5~10 Years
Application: Solar Power System Color: Customer Required
High Light:

3 inch Slew Drive Gearbox

,

ip66 Slew Drive Gearbox

,

Heavy Loading Slew Drive Gearbox

3 Inch Vertical IP66 Slew Drive Gearbox, Heavy Loading For Solar Panel Tracking System



Description

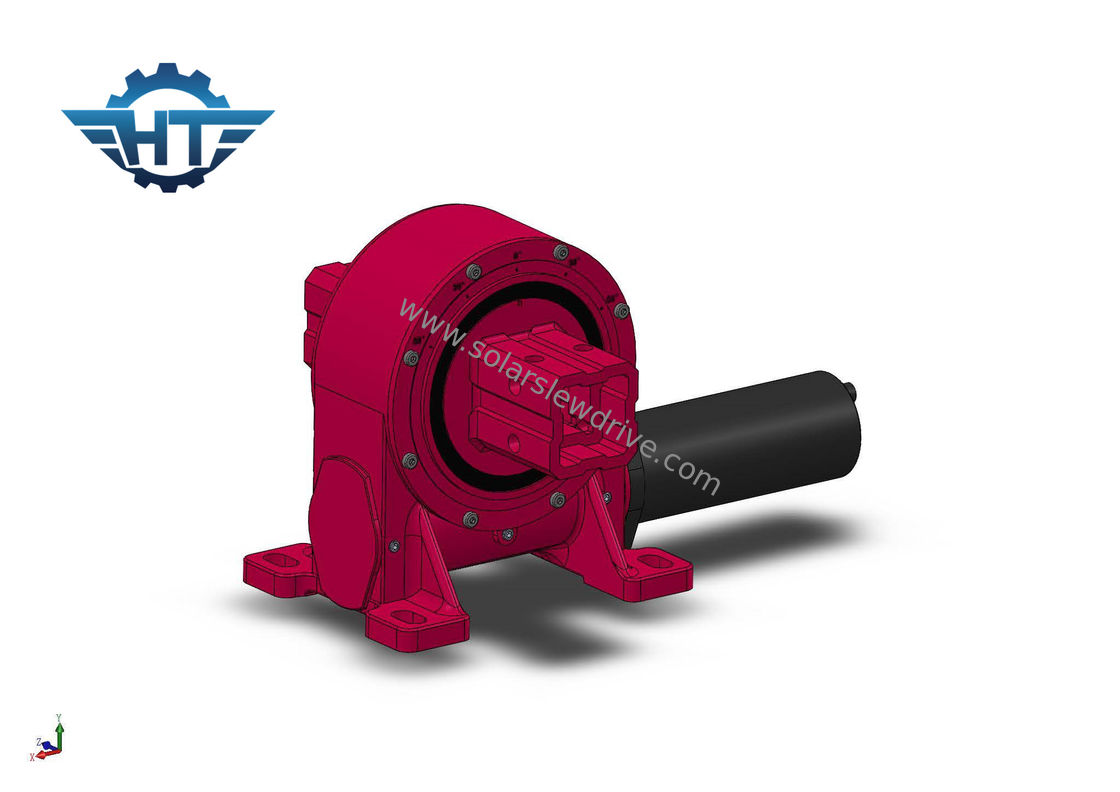

VE6 slewing drive is a half gear and limit stop inside which is designed for a single axis solar tracking system. Our slewing drives are powered with hourglass worm technology for maximum gear torque and the smoothest rotation.



6 Inch Slewing Drive
Brand  Hangtuo
Output Torque  5100 N.m
Tilting Moment Torque  8000 N.m
Holding Torque  39000 N.m
Static Axial Rating  110 kN
Gear Ratio  51:1
Tacking Precision  ≤0.15°
Weight  45 kg
Standard  CE/ISO
Place of Origin  China
Service  OEM service; Customized Solution
Material  42CrMo
Transport terms  by sea , by air or by Railway
Delivery Time  Within 25 days after down payment
Port  Shanghai
Payment terms

 A: T/T

 B: Western Union

 C: Paypal



The standard slew drives are fitted with an open housing and single self locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device.



VE Model Performance Parameters



Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Precision (degree) Precision(°) IP Self-locking Weight (kg)
3" 600 1800 1500 22 15 31:1 40% ≤0.1 66 Yes 12kg
5" 800 9200 5000 16 27 37:1 40% ≤0.1 66 Yes 18kg
7" 1750 13200 7000 34 58 57:1 40% ≤0.1 66 Yes 32kg
8" 2250 20400 11200 50 80 51:1 40% ≤0.1 66 Yes 28kg
9" 4300 30800 16000 60 130 61:1 40% ≤0.1 66 Yes 52kg
12" 5600 40560 25000 77 190 78:1 40% ≤0.1 66 Yes 65kg
14" 6750 44200 48000 110 230 85:1 40% ≤0.1 66 Yes 88 kg
17" 9460 53040 67000 142 390 102:1 40% ≤0.1 66 Yes 135 kg
21" 16000 65000 89000 337 640 125:1 40% ≤0.1 66 Yes 192 kg
25" 21450 89000 112000 476 950 150:1 40% ≤0.1 66 Yes 251 kg



Applications



The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
