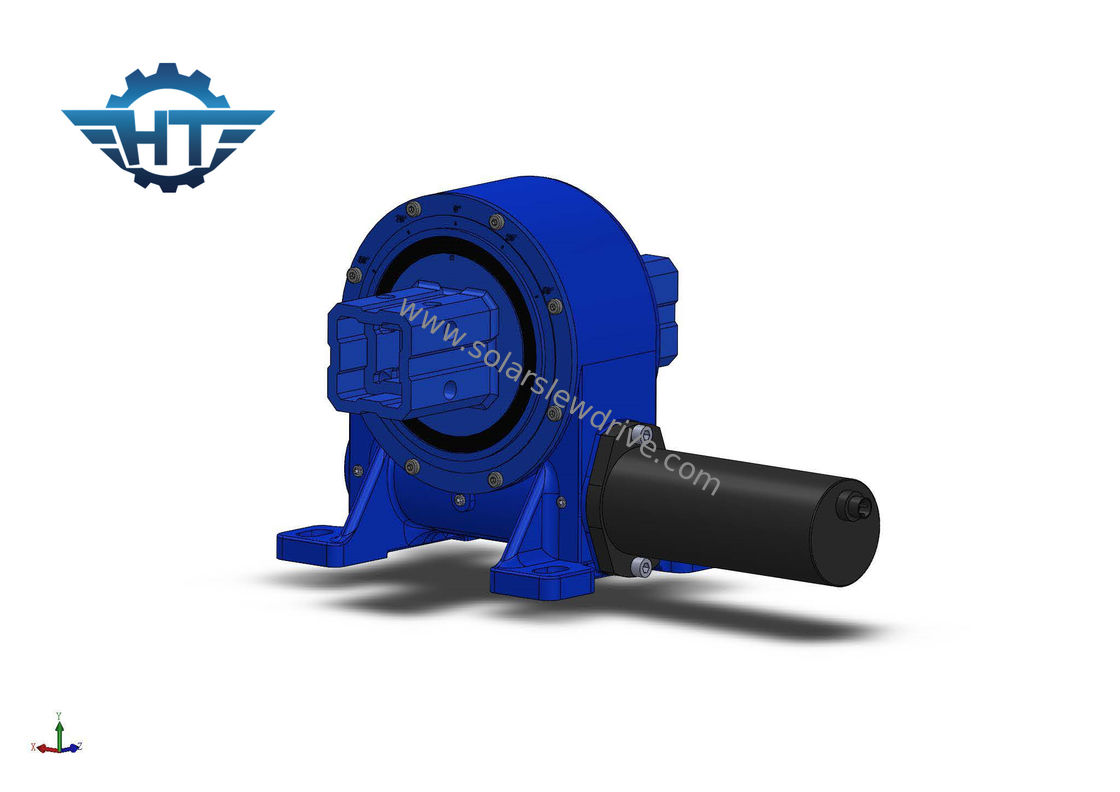

9 Inch Planetary Slew Drive Gearbox Self Lock And High Accuracy For Single Axis Trackers

9 Inch Planetary Slew Drive Gearbox Self Lock And High Accuracy For Single Axis Trackers

  • 9 Inch Planetary Slew Drive Gearbox Self Lock And High Accuracy For Single Axis Trackers
  • 9 Inch Planetary Slew Drive Gearbox Self Lock And High Accuracy For Single Axis Trackers
9 Inch Planetary Slew Drive Gearbox Self Lock And High Accuracy For Single Axis Trackers
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 330~360 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Slewing Drive Material: 42CRMN Or 50Mn
Application: Solar Power System Warranty: 10 Years
Color: Customer Required Size: 3 Inch - 25 Inch
Motor: 24VDC/220VAC Life Cycle: 30 Years
High Light:

9 Inch Slew Drive Gearbox

,

Planetary Slew Drive Gearbox

,

Self Lock Slew Drive Gearbox

9 Inch Planetary Slew Drive Gearbox, Self-Lock And High Accuracy For Single Axis Trackers



Description



Changzhou Hangtuo is a professional manufacturer and exporter of slewing drives, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems, satellite, antenna, robot, etc.



Features



Delivers custom-engineered solutions to customers in more than 30 countries. Our manufacturing standard is according to machinery standard JB/T2300-2011, we also has been found the efficient Quality Management Systems(QMS) of ISO 9001:2008 and GB/T19001-2008. We devote ourselves to the R &D of customized slewing bearing with high precision,special purpose and requirements.



We are committed to keep the spirit of continuous improvement and focus our strategy of strict quality control standards, quick response, prompt delivery and low price.We look forward to working on all of our customers' growing demands. Our ability to optimize the bearing design for your specific needs is unparalleled and we will assist you throughout the design, manufacturing and implementation process.





Vertical Slew Drive Performance Parameters



Model

Ratio

Rated Output Torque(N.m)

Tilting Torque(N.m)

Holding Torque(N.m)

Axial Load(kN)

Radial Load(kN)

Efficiency

Precision(°)

Self-locking

Weight(kg)

3"

31:1

600

1500

1800

22

15

40%

≤0.1

Yes

12

5"

37:1

800

5000

9200

16

27

40%

≤0.1

Yes

18

7"

57:1

1750

7000

13200

34

58

40%

≤0.1

Yes

32

8"

51:1

2250

11200

20400

50

80

40%

≤0.1

Yes

28

9"

61:1

2250

16000

30800

60

130

40%

≤0.1

Yes

52

12"

78:1

4300

25000

40560

77

190

40%

≤0.1

Yes

65

14"

85:1

5600

48000

44200

110

230

40%

≤0.1

Yes

88

17"

102:1

6750

67000

53040

142

390

40%

≤0.1

Yes

135

21"

125:1

16000

89000

65000

337

640

40%

≤0.1

Yes

192

25"

150:1

21450

112000

89000

476

950

40%

≤0.1

Yes

251



Application



Slew drives are used around the world. The application areas include the following: As steering transmission in crane traveling gears and
heavy-duty transporters, in lift platforms, in grippers, tongs, and other rotary devices in the construction machine sector.



Solar tracking systems, wind energy, dishes, satellite antenna etc.
