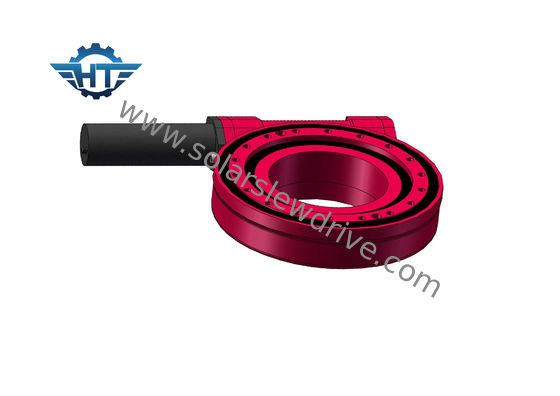

SE14 Slewing Drive Gearbox For Solar Tracker System Worm Drive With Hydraulic Motor

SE14 Slewing Drive Gearbox For Solar Tracker System Worm Drive With Hydraulic Motor

  • SE14 Slewing Drive Gearbox For Solar Tracker System Worm Drive With Hydraulic Motor
  • SE14 Slewing Drive Gearbox For Solar Tracker System Worm Drive With Hydraulic Motor
SE14 Slewing Drive Gearbox For Solar Tracker System Worm Drive With Hydraulic Motor
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE14"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 410~510/Piece ~360/ pc
Packaging Details: Plywood Box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Model: 14 Inch Holding Torque: 54200 Nm
Tilting Torque: 68000 Nm Output Torque: 6550 Nm
Axial Load: 680 KN Radical Load: 230 KN
Certificate: ISO9001,CE Painted: Available
Warranty: 5 Years Self-lock: Yes
High Light:

Slewing Drive Gearbox

,

Worm Drive slew drive gearbox

,

Hydraulic Motor slew drive gearbox

SE14 Slewing Drive Gearbox For Solar Tracker System, Worm Drive With Hydraulic Motor



Product Code Description



M(E,SDE,VE,SE,HSE,FE,WE,PE,ZSE,ZSDE,ZVE…)9(3~25)A(B,C…)-61(M)HC(HA,HD,HQ,HN…)-B(12M,25M,160,24,220,380…)R(L)C(A,E)-2-12 (9…)-REV.AM: indicates the code of the manufacturing drawing; MZ: indicates the code of the zero-clearance slewing device;

E: means fence type; KDE: means vertical and horizontal type; VE: means vertical type; KE: means high-grade waterproof type;

HKE: means maintenance-free high-grade waterproof type; FE: means brake type; WE: means worm gear type; PE: means large and small gear type; if there is no E means basic type;

SE: means horizontal (sliding bearing structure), SDE: means vertical and horizontal (sliding bearing structure), VE: means vertical (sliding bearing structure), Z in front of S means zero clearance;

3~25: Represents the specifications of 3 inches to 25 inches;

A: Indicates the code of the conventional device. If the device design has major changes, the code B, C... can be used;

61: Represents the reduction ratio of the slewing device (number of teeth).;

M: indicates that the slewing bearing adopts metric threaded holes; without M means that the slewing bearing adopts inch threaded holes;

HA: indicates that the slewing ring is quenched.; HC: indicates that the slewing ring is not quenched.; HD: indicates that the slewing ring is quenched.;

HQ: indicates the QPQ treatment of the outer ring of the slewing ring. HN: indicates the nitriding treatment of the outer ring of the slewing ring.;

B: indicates that the worm input end is a 6B spline (12M indicates that the worm input end is a Φ12 hole.; 25M indicates that the worm input end is a Φ25 hole;

160 means that a 160CC hydraulic motor is installed at the worm input end. 24 means that a 24V geared motor is installed at the worm input end;...);

R: means right installation.; L: means left installation.;

C: means the blind cap; A: means the direction of the hydraulic motor oil port is facing outwards (I: means the direction of the hydraulic motor oil port is facing inward;); E: means with an encoder;

2: Represents double-cylinder slewing device;

12: Indicates that the position of the steel ball plug is at 12 o'clock;

REV.A: Version number, increasing from REV.A, REV.B, REV.C...sequentially.

Note: 1. If there are other special codes in the future, they will be added;

2. For special customers who need special requirements, the customer number can be added to the drawing number according to the actual situation.

3. The HSE rotary device must meet the following requirements: maintenance-free, plus Klüber, full of grease, inner ring coating, IP66



Performace of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



Features

Slewing drive is also called slewing ring bearing. As technology has improved, more slewing drives are using hourglass worm technology, in which the worm is shaped to engage more teeth in the gear. This increased tooth engagement results in greater strength, efficiency and durability.The slewing drive uses standard worm technology in which the worm on the horizontal. The speed ratio of the shaft depends on the relationship between the number of threads on the worm and the number of teeth in the worm gear or gear.

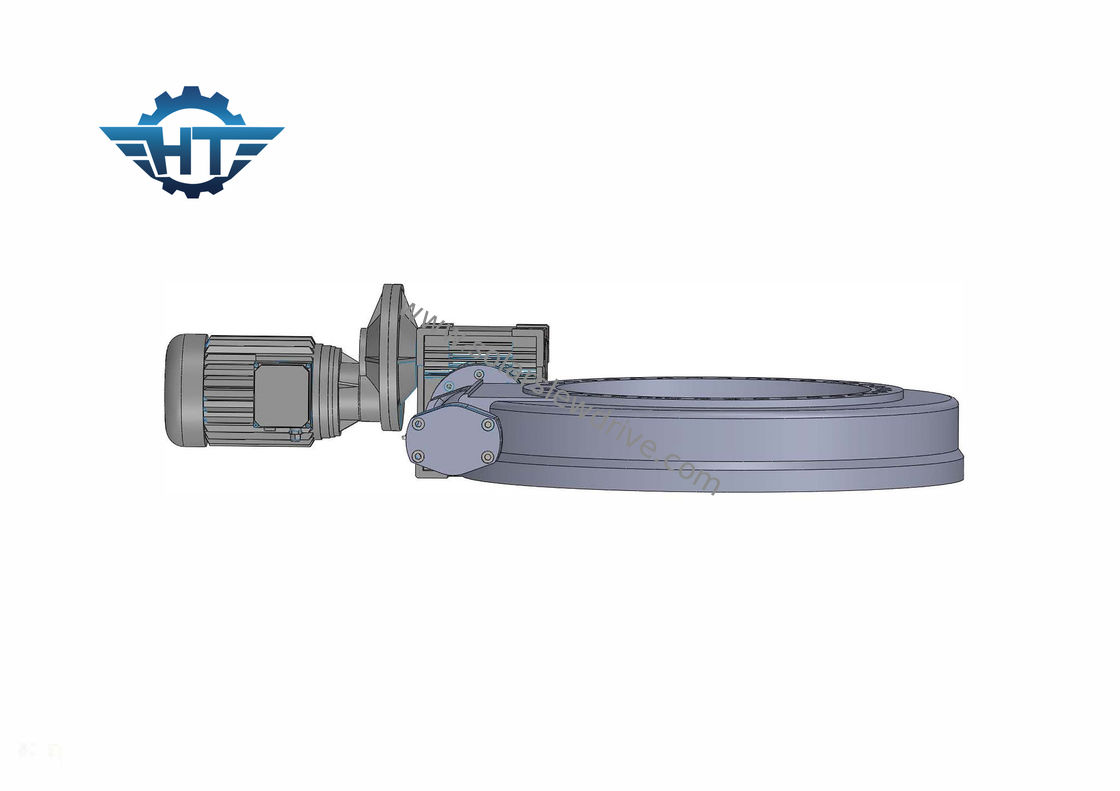

SE14 Slewing Drive Gearbox For Solar Tracker System Worm Drive With Hydraulic Motor 0

Applications

There are many applications where a rotary drive can be used, primary because it is well suited for applications that require load to maintain power and rotational torque.


Typical swing drive applications include, but are not limited to: solar tracker, wind turbine, men's lift, hydraulic machinery, telehandler, excavator , lift, cranes, drilling equipment, military equipment.
