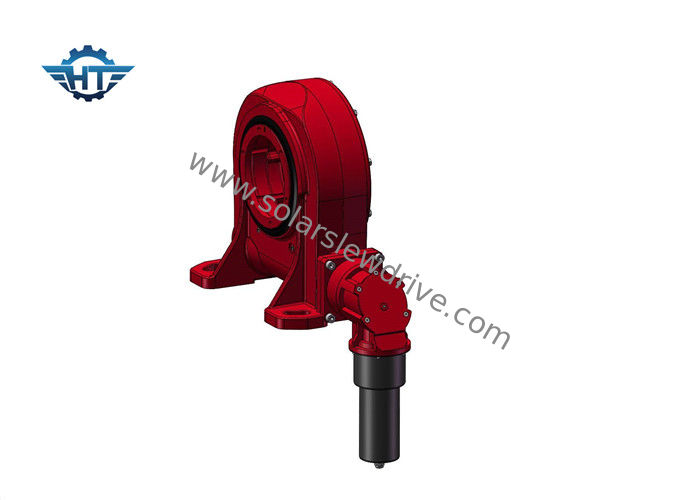

VE6 Vertical Solar Slew Drive Powered With Hourglass Worm Gear For PV Tracking System

VE6 Vertical Solar Slew Drive Powered With Hourglass Worm Gear For PV Tracking System

    • VE6 Vertical Solar Slew Drive Powered With Hourglass Worm Gear For PV Tracking System
    • VE6 Vertical Solar Slew Drive Powered With Hourglass Worm Gear For PV Tracking System
  • VE6 Vertical Solar Slew Drive Powered With Hourglass Worm Gear For PV Tracking System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: VE6

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~330/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Place Of Origin: Changzhou, China Function: High Torque
    Protect Feature: Enclosed Type: Slewing Drive
    Material: 42CrMo Or 50Mn Warranty: 5~10 Years
    Application: Solar Power System Color: Customer Required
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive



    VE6 Vertical Solar Slew Drive Powered With Hourglass Worm Gear For PV Tracking System



    Description



    VE6 slewing drive, which have a compact design with high torque for single axis solar tracking system, is powered with hourglass worm technology for maximum gear torque and the smoothest rotation.



    The standard slew drives are fitted with an eclosed housing and single self locking hourglass worm shaft. Once the power source input is returned to neutral, the worm shaft will lock the load into position without requiring any external braking device.



    VE6 Vertical Solar Slew Drive Powered With Hourglass Worm Gear For PV Tracking System 0



    Applications



    Typical slew drive applications include solar industry, truck cranes, man lifts, and utility equipment, hydraulic attachments, oil tool equipment, marine cranes, tire handlers, digger s and automotive lifts, but the slew drives are used in many other applications requiring load holding and rotational capability. We offer different slew drive models with different moment load capacities.



    VE Model Performance Parameters



    Model Rated Output Torque (N.m) Holding Torque (N.m) TiltingTorque (N.m) Axial Load (kN) Radial Load (kN) Ratio Precision (degree) Precision(°) IP Self-locking Weight (kg)
    3" 600 1800 1500 22 15 31:1 40% ≤0.1 66 Yes 12kg
    5" 800 9200 5000 16 27 37:1 40% ≤0.1 66 Yes 18kg
    7" 1750 13200 7000 34 58 57:1 40% ≤0.1 66 Yes 32kg
    8" 2250 20400 11200 50 80 51:1 40% ≤0.1 66 Yes 28kg
    9" 4300 30800 16000 60 130 61:1 40% ≤0.1 66 Yes 52kg
    12" 5600 40560 25000 77 190 78:1 40% ≤0.1 66 Yes 65kg
    14" 6750 44200 48000 110 230 85:1 40% ≤0.1 66 Yes 88 kg
    17" 9460 53040 67000 142 390 102:1 40% ≤0.1 66 Yes 135 kg
    21" 16000 65000 89000 337 640 125:1 40% ≤0.1 66 Yes 192 kg
    25" 21450 89000 112000 476 950 150:1 40% ≤0.1 66 Yes 251 kg
