Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | VE7 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Material: | 50Mn, 42CrMo | Warranty: | 10 Years |
|---|---|---|---|
| OEM: | Available | Rotate Type: | Two Axis |
| Color: | Silver Grey | Installation Site: | Roof And Field |
| Feature: | Quick Installation | Motor: | 12V/24V DC |
| High Light: | slewing drive for solar tracking system,solar tracker drive |
||

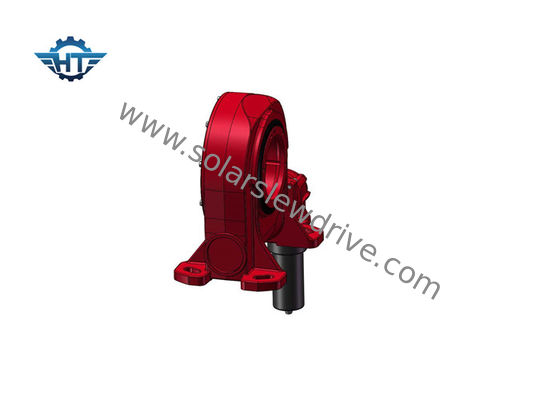

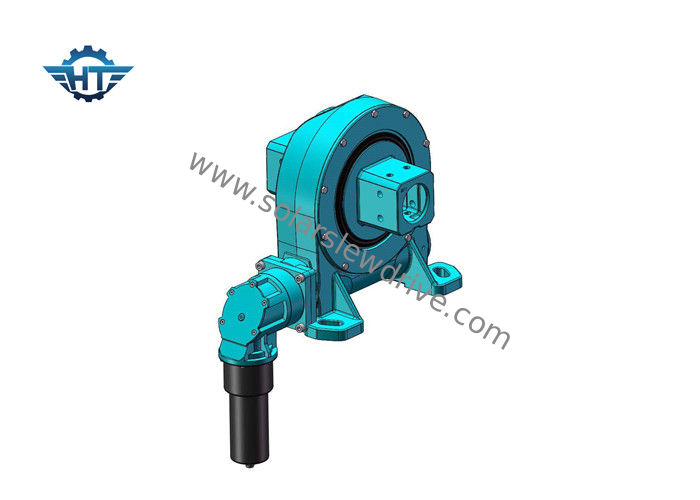

Ve7 Worm Gear Slew Drive With 15*15 Square Output Torque For Solar Tracking System
Description
Vertical slew drive will let the single axis solar tracker system moving toward the sun to track sun in east-west direction. The single axis solar tracking system is suitable for lower latitudes with high sun height angle. Its power generation efficiency is 10~20% higher than fixed sun panel tracking. The solar tracking system can be installed at ground.
Single axis solar tracker including mounting bracket, horizontal shaft, rotation drive mechanism, wind speed detection device and tracking controller etc. Single axis solar tracker has one degree of freedom that acts as an axis of rotation.
Features
1. It can be applied in multi-linkage, to support the system in a stable movement, excellent in cost, and suitable for large scale PV plant.
2. Maintenance free design. Our slewing drive can effectively prevent the erosion caused by sand, dust, rain and snow.
3. Self-locking design. Our new designed self-locking slewing drive can make the whole system more safety in case of sudden occasions.
Technical Sheet Of VE Slewing Drive
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 1800 | 22 | 15 | 40% | Yes | 12 |
| 5" | 37:1 | 800 | 5000 | 9200 | 16 | 27 | 40% | Yes | 18 |
| 7" | 57:1 | 1750 | 7000 | 13200 | 34 | 58 | 40% | Yes | 32 |
| 8" | 51:1 | 2250 | 11200 | 20400 | 50 | 80 | 40% | Yes | 28 |
| 9" | 61:1 | 2250 | 16000 | 30800 | 60 | 130 | 40% | Yes | 52 |
| 12" | 78:1 | 4300 | 25000 | 40560 | 77 | 190 | 40% | Yes | 65 |
| 14" | 85:1 | 5600 | 48000 | 44200 | 110 | 230 | 40% | Yes | 88 |
| 17" | 102:1 | 6750 | 67000 | 53040 | 142 | 390 | 40% | Yes | 135 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | Yes | 192 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | Yes | 251 |
