Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE21" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 280~504 / pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | SE21" |
|---|---|---|---|
| Gear Ratio: | 125:1 | Rated Output Torque: | 16 KNm |
| Tilting Torque: | 205 KNm | Efficiency: | 40% |
| Color: | RAL 9006 | ||
| High Light: | slewing drive for solar tracking system,solar tracker drive |
||

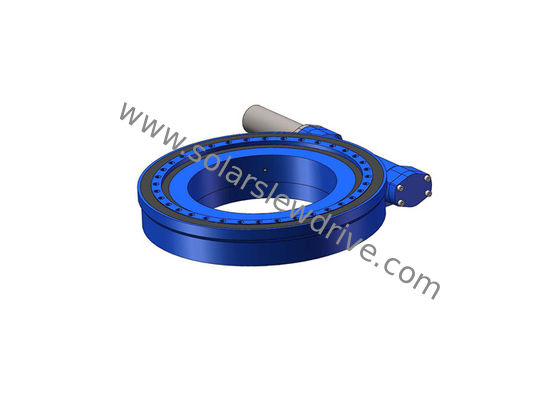

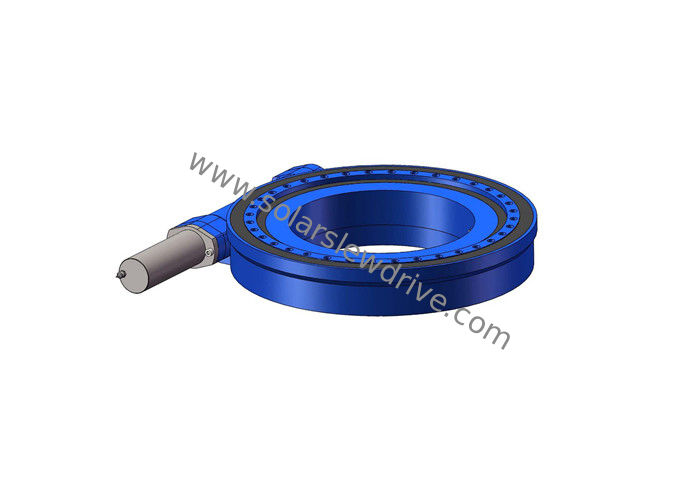

21 Inch IP66 Solar Tracker Slew Drive With 42CrMo Worm And Envelop Gear For Industrial Use
Description
A slewing bearing or slew ring drive is a rotational rolling-element bearing that can typically supports a heavy load but slow-turning. It is often used in a horizontal platform such as a conventional crane, a swing yarder, or the wind-facing platform of a horizontal-axis windmill.
Features
1. Can get a large transmission ratio
2. More compact design
3. More tooth contact by using envelop worm, the multi-tooth meshing transmission make it running smoothly with low noise.
4. Self-locking, it can realize the reverse self-locking, that is to say, only the worm to drive the worm wheel. With this feature, the worm mechanism used in heavy machinery can play a safety protection role.
5. High transmission efficiency, less wear.
SE Slewing Drive Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Application
Engineering machinery is the most widely used place for slewing bearings, such as Earth moving machinery, Excavators, Disintegration machines, Stacker reclaimers, graders, road rollers, powerful boring machines, rock drilling machines, etc.
The slewing drive's application is extensive and has increased significantly. Once primarily utilized for mining and heavy construction, now slewing drive applications include solar energy, wind turbines and even amusement rides. Industries turn to slew drives that require tremendous strength, accuracy, safety, and efficiency.
