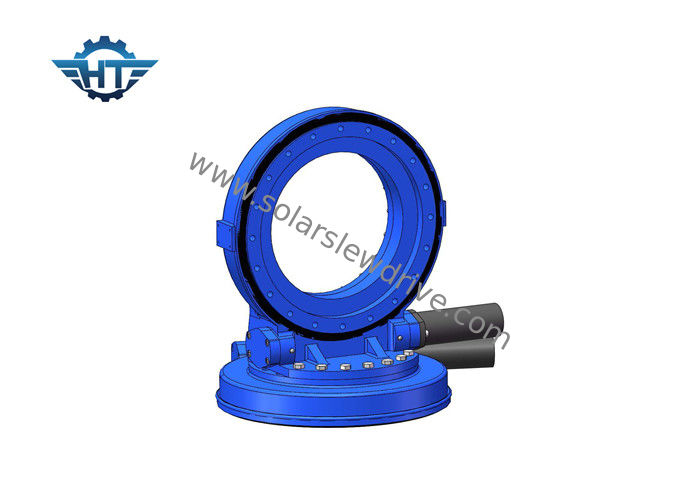

Worm And Gear Dual Axis Slew Drive With Self Lock And High Backlash Features

Worm And Gear Dual Axis Slew Drive With Self Lock And High Backlash Features

    • Worm And Gear Dual Axis Slew Drive With Self Lock And High Backlash Features
    • Worm And Gear Dual Axis Slew Drive With Self Lock And High Backlash Features
  • Worm And Gear Dual Axis Slew Drive With Self Lock And High Backlash Features

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Brand Name: Hangtuo Material: 50Mn, 42CrMo
    OEM: Available Certificate: ISO9001, CE
    Matched Motor: Electrical Motor Package: Plywood Case
    Color: As Requirement Precision: ≤0.1°
    High Light:

    slewing ring drive

    ,

    worm drive motor

    Worm And Gear Dual Axis Slew Drive With Self-lock And High Backlash Features For PV, CSP, CPV



    Description



    Slewing drive a transmission part which has reverse self-locking feature because of the stucture of gear and worm. This feature greatly enhances the stability of the operating and safety factor. In addtion, the worm is envelop worm which means more contact with the gear to enhance the strength and stability of the unit.



    Hangtuo's dual axis slewing drive is designed to hold heavy loads and withstand high forces without breaking. The slewing drive is tested for quality and reliability. Our dual axis drives are engineered to create customized solutions with a 30-year field life. All our drives meet the standards set by ISO 9001, CE, certifications and our components and final assemblies are qualified.



    Features



    We plans to establish the most professional inspection laboratory in slewing driving industry.

    Raw material inspection test: portable Sclerometer

    Surface: Thickness Gauge

    Electrical performance: motor torsion tester

    Anti-errosion: salt spray test machine

    Anti-aging: UV test machine

    Thermal adapdation: high low temperature chamber

    Other jigs & fixtures toolings





    SDE Slewing Drive Data Sheet



    Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
    3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
    5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
    7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
    9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
    12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
    14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
    17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



    Application



    1. Single axis and dual axis solar tracking solutions to improve PV panel efficiency.

    2. Solar concentrator, solar dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough, PV tracker
    3. Rotate the pedestal in wind turbines
    4. Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, dock crane, timber grab
    5. Industry Market: automation/assembly line, robotic arm
    6. Satellite: slew drive can be used for space communications and global positioning systems in satellite dish
