Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE12 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Material: | 50Mn, 42CrMo | Self-lock: | Yes |
|---|---|---|---|
| Tilting Torque: | 54.4 KNm | Holding Torque: | 40.5 KNm |
| Application: | Cranes | Installation Site: | Construction Machinery |
| Packaging: | Plywood | Motor: | AC Motor |
| High Light: | worm gear slewing ring,worm gear motor |
||

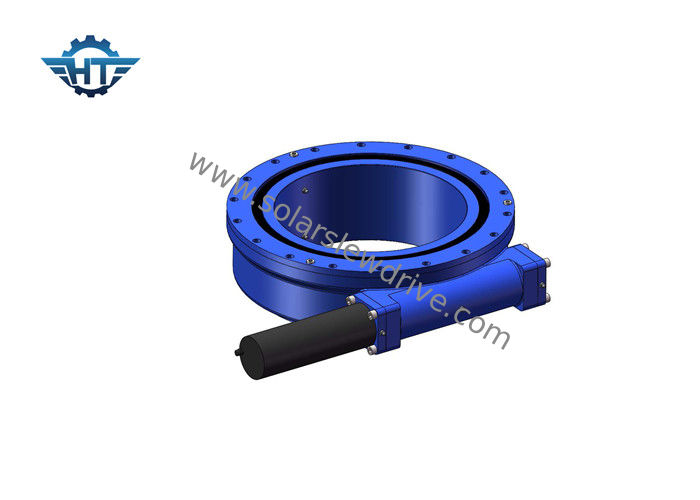

IP66 Slew Drive Gearbox Featured With High Accuracy Low Speed For Cranes And Machinery
Description
1. Working Temperature
Slewing ring bearings are often used indoors, and outdoors where exposure to moisture and significant contamination is possible. Normal temperature ranges -40°F to +140°F (-40°C to +60°C) are standard. Our sepecial designed slewing ring bearings can stand termperature ranges from -30℃ to +120℃. It is more suitble in condition of hot and dry weather. Slewing rings designed to operate in harsher environments.
2. Lubrication
Grease is the most common lubricant used in slewing ring bearings and gear applications. Regular lubrication through provided grease fittings or grease holes is required for proper operation on standard slewing rings.
3. Bolts
It is always suggested that bolts be selected with the advice and assistance of our engineers.
4. Accuracy
Our stadard slewing ring bearings are not typically provided with small tolerances. Some slewing ring applications require a higher degree of accuracy. For engineering and design support on special applications please contact us.
Parameters of SE Series
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Application
The slewing ring bearings can be used for a wide range of applications. The areas of deployment range from excavators and cranes, opencast mining and wind turbines, to antenna. Other fields of application include engineering and solar tracking system.
