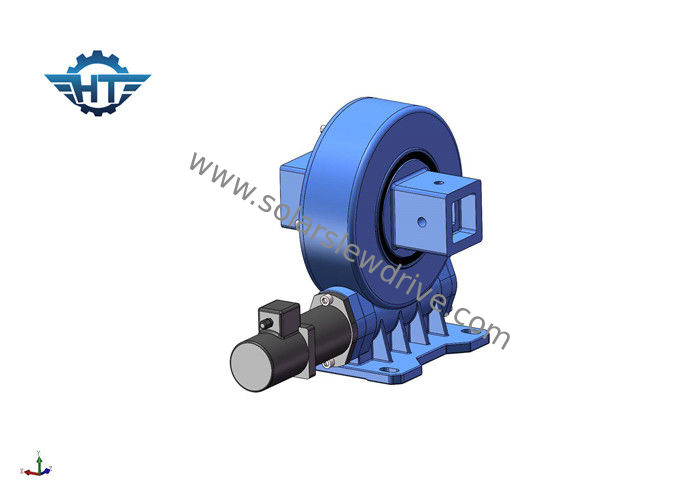

VE9 110*110mm Tube Worm Gear Slew Drive Gearbox With Enclosed Housing

VE9 110*110mm Tube Worm Gear Slew Drive Gearbox With Enclosed Housing

  • VE9 110*110mm Tube Worm Gear Slew Drive Gearbox With Enclosed Housing
  • VE9 110*110mm Tube Worm Gear Slew Drive Gearbox With Enclosed Housing
VE9 110*110mm Tube Worm Gear Slew Drive Gearbox With Enclosed Housing
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~380/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Type: Enclosed Application: Construction Machinery
Driver: Hydraulic Motor IP Grade: IP66
Color: As Requested Effciency: 40%
Model: VE9 Ratio: 61:1
High Light:

worm gear slewing ring

,

worm gear motor

VE9 110*110mm Tube Slew Drive Gearbox With Enclosed Housing For Solar Tracking System​



Product Description



Slewing drive may be small, but they help do some of the largest jobs in various applications. From swing arm rotation on solar trackinng system to cranes, wind turbine, slewing drives are an integral part of many machinated processes.



Especially, the vertical designing is the biggest bright spot of Hangtuo slewing drives ,the vertical designing is mainly used for the solar tracker system , the special structure simplifies the complex structure of the single axis solar tracking system bracket, reducing the cost of whole system, the vertical designing is playing a more competitive role in the solar tracker market.



Model: VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 2250 N.m
Tilting Moment Torque 16 K N.m Holding Torque 30. K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 61:1 Efficiency 40%



Applications


The most common slewing drive application for the dual-axis slewing drivesare dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
SDE Dual-Axis Positioner Specifications



Parameters of VE Series



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251
