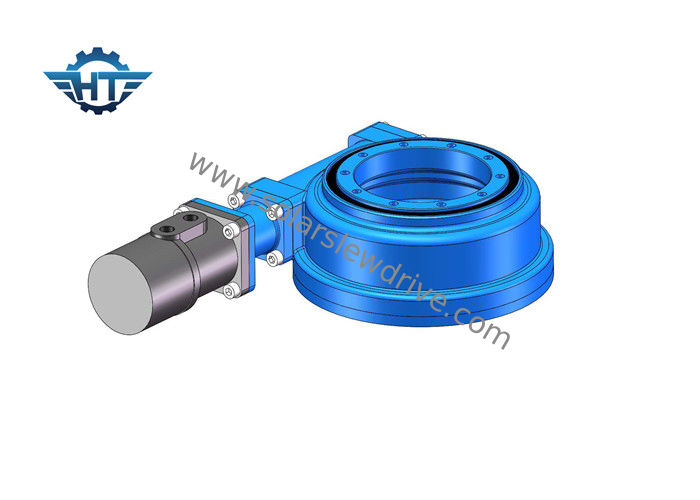

SE17 Self Locking Hydraulic Slew Drive For Horizontal Single Axis Linkage System

SE17 Self Locking Hydraulic Slew Drive For Horizontal Single Axis Linkage System

    • SE17 Self Locking Hydraulic Slew Drive For Horizontal Single Axis Linkage System
    • SE17 Self Locking Hydraulic Slew Drive For Horizontal Single Axis Linkage System
  • SE17 Self Locking Hydraulic Slew Drive For Horizontal Single Axis Linkage System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE17

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1200/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Gear Ratio: 102:1 Efficiency: 40%
    Type: Enclosed Application: Linkage System
    OEM Service: Available Driver: AC Motor
    IP Grade: IP66 Color: As Requested
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    SE17 Self-locking Hydraulic Slewing Ring Bearing For Horizontal Single Axis Linkage System



    Description



    Our custom slewing ring bearing solutions for the solar industry help harness the sun’s power in an efficient and cost-effective manner. Our slewing drives and worm gear drives deliver the highest dynamic and static torque load capacity in a small package. It is designed to help the rotation of the sun tracking system, and improves power generation efficiency.



    Features



    1. SE self-locking enclosed slewing drive help power movement across industries and are perfect for situations requiring both load-holding and rotational torque from the same gearbox.

    2. IP66 grade housing to protect from harsh field environment

    3. Rotate 360 degrees which can meet various applications

    4. Small backlash

    5. Envelop worm



    Performance Parameters of SE Series



    Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



    Applications



    For solar: Concentrator Solar Dish, CPV (Concentrated Photovoltaics), CSP (Concentrated solar power), solar parabolic trough, PV tracker
    For wind: it is uesd to rotate the pedestal in wind turbines
    Construction Machinery Application: widely applied on mounted truck crane, aerial working platform, Dock Crane, Timber Grab
    Industry Market: Automation/Assembly line, robotic arm

    Satellite: slew drive can be used for space communications and global positioning systems in satellite dish
