Providing Innovative and Cost-effective Slewing Drives
 |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SE1~SE25 |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1200/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 2000 pcs per month |
| Place Of Origin: | Changzhou, China | Model: | SE1~SE25 |
|---|---|---|---|
| Gear Ratio: | 31:1~150:1 | Application: | Solar Energy |
| Driver: | Hydraulic Motor | Certificate: | ISO9001, CE |
| Installation: | Vertical/Horizontal | Maintenance: | Free |
| Color: | Sliver Grey | Backlash: | 0.1 Degree |
| High Light: | solar tracker drive,slewing gear |
||

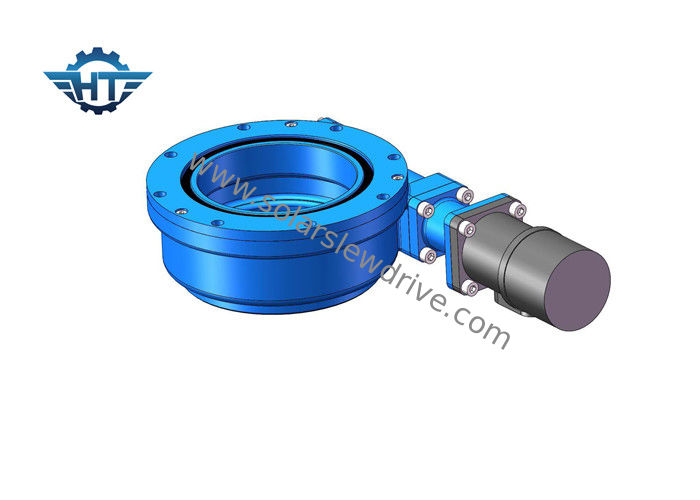

SE7 Hydraulic Drived Slewing Ring Bearing Gearbox With IP65 Enclosed Housing For Solar Energy
Description
Hangtuo is a slewing ring bearing gearbox and slewing drives manufacturer specializing in standard and non-standard slewing bearings or slewing drives. Over the years, we supplied high quality product and good service to every user and gain good credit. We have strict quality control system in our own factory, meanwhile, we have passed ISO9001-2008 Quality System Certification. Our slewing drives come in a variety of model sizes from 1 inch to 25 inches, performance ranges from 0.3 to 21 kNm. We also have slewing drives of different backlash to meet customers' different project technical requirement. The slewing drives are well suited for applications that require both load holding and rotational torque from the same gearbox. They can also be made with dual axis of rotation, or with dual drives on the same axis, and can be mounted vertically, horizontally or both.
SE Slewing Drives Technical Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 1” | 32:1 | 400 | 1000 | 1800 | 22 | 12 | 40% | ≤0.1 | Yes | 6 |
| 3” | 31:1 | 600 | 1500 | 3000 | 30 | 16 | 40% | ≤0.1 | Yes | 8 |
| 5” | 37:1 | 800 | 6000 | 9200 | 68 | 27 | 40% | ≤0.1 | Yes | 12 |
| 7” | 57:1 | 2000 | 13500 | 13200 | 132 | 58 | 40% | ≤0.1 | Yes | 21 |
| 9” | 61:1 | 4400 | 45000 | 30800 | 340 | 130 | 40% | ≤0.1 | Yes | 49 |
| 12” | 78:1 | 5800 | 54400 | 40560 | 480 | 190 | 40% | ≤0.1 | Yes | 61 |
| 14” | 85:1 | 6550 | 68000 | 54200 | 680 | 230 | 40% | ≤0.1 | Yes | 63 |
| 17” | 102:1 | 9400 | 135600 | 65040 | 980 | 390 | 40% | ≤0.1 | Yes | 105 |
| 21” | 125:1 | 16000 | 203400 | 81000 | 1600 | 640 | 40% | ≤0.1 | Yes | 149 |
| 25” | 150:1 | 21000 | 271160 | 89000 | 2400 | 950 | 40% | ≤0.1 | Yes | 204 |
Features
1. Excellent backholding torque to ensure the safety
2. High precision to ensure a stable rotation
3. High IP rating to improve service life in outdoor comlicated conditions
4. Self-braking to ensure system safety
Applications
The slewing ring bearings or slewing drives are mainly apply for tunneling equipment, harbor and shipyard cranes, construction equipment, mobile cranes, offshore technology, tower cranes, turning machines, solar energy plants, ship deck cranes, railway cranes, man lifts, wind turbines, and more.
Our Service
We will assist you throughout the develop and design, manufacturing and implementation process. We devoted ourself to use our resources to extend your company's capabilities and provide a comprehensive solution for your application requirement.
1. We provide quality and cost effective products.
2. We provide custom designs that meet specific customer requirements.
3. Timely reply. We will reply you in 12 hours.
