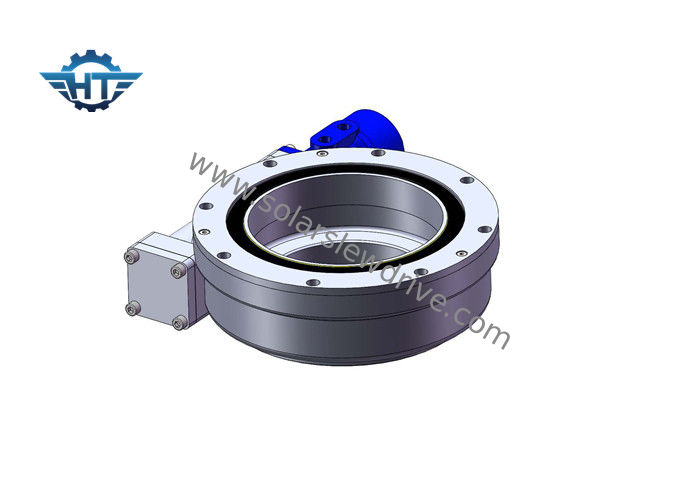

CE Hydraulic Slew Drive Horizontal Slewing Bearing With High Torque Drived

CE Hydraulic Slew Drive Horizontal Slewing Bearing With High Torque Drived

    • CE Hydraulic Slew Drive Horizontal Slewing Bearing With High Torque Drived
    • CE Hydraulic Slew Drive Horizontal Slewing Bearing With High Torque Drived
  • CE Hydraulic Slew Drive Horizontal Slewing Bearing With High Torque Drived

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE12"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: SE12 Gear Ratio: 78:1
    Application: Construction Machinery Place Of Origin: Changzhou, China
    Driver: Hydraulic Motor Warranty: 5 Years
    Certificate: ISO9001, CE Installation: Horizontal
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive

    SE Series Horizontal Slewing Bearing With High Torque Drived With Hydraulic Motor



    Product Description

    Slewing drive or slewing bearing with hydraulic motor is one of our competitive products. It is self-designed and manufactured by our company. It can be applied as a rotation part in solar energy system, hydraulic aerial cage, gripping apparatus, hoisting crane,excavator and spare parts and etc.



    Feature

    1. 360 degree rotation

    2. modularization,easy to install and dismantle

    3. reverse self-locking

    4. bear large weight and large reduction gear ratio

    5. shell protection system of worm gear and worm



    Application

    Our slewing drives are designed around our slewing bearings that can react to all axial and radial forces and resulting tilting moments created in the most challenging applications. Slewing drive or slewing bearings are usually found in application such as: wind turbines, heavy load transporters, solar trackers, harbor cranes, hydraulic equipment, crane steering mechanisms, automation systems, heavy load manipulators, yaw and pitch control tables.



    Technical Parameters of SE Slewing Bearing Drive

    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204
