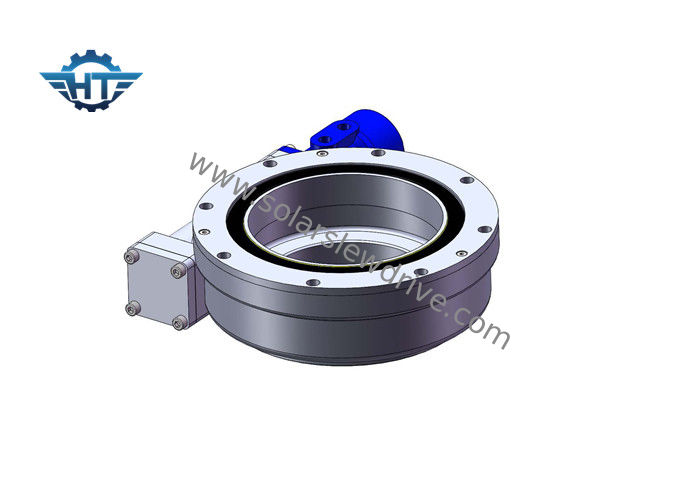

SE14 High Torque Hydraulic Slew Bearing With Worm Gear Design For Cranes

SE14 High Torque Hydraulic Slew Bearing With Worm Gear Design For Cranes

    • SE14 High Torque Hydraulic Slew Bearing With Worm Gear Design For Cranes
    • SE14 High Torque Hydraulic Slew Bearing With Worm Gear Design For Cranes
  • SE14 High Torque Hydraulic Slew Bearing With Worm Gear Design For Cranes

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE14

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1200/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: SE14 Gear Ratio: 85:1
    Application: Cranes Place Of Origin: Changzhou, China
    Driver: Hydraulic Motor Certificate: ISO9001, CE
    Installation: Horizontal Maintenance: Free
    Color: As Requested Backlash: <0.1°
    High Light:

    solar tracker drive

    ,

    slewing gear



    SE14 High Torque Hydraulic Slew Bearing With Worm Gear Design For Cranes



    Product Description

    Slewing bearing, also called slewing drive is a kind of transmission spareparts. It's made up of a worm gear, a slewing bearing, housing and an electric or hydraulic motor.



    About Us

    We are committed to researching, developing and applying high quality, precision transmission equipment products and provides reliable mechanical transmisson parts for horizonal single axis, vertical single axis and dual-axis slewing drive for photovoltaic tracking system, CSP,CPV solar tracking design. Our professional and high-quality products will be also applied well as a steady solution on aerial working platform, truck cranes, timber grab, drilling rig, spray equipment, hydraulic module vehicle,automated assembly lines, wind yaw systems,etc.



    Parameters of SE Series Slewing Drives

    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



    Advantages

    1. Strong overturning moment based on slewing ring

    2. Adopt double enveloping worm

    3. Using multi tooth contact to improve load and accuracy

    4. Self-locking function
