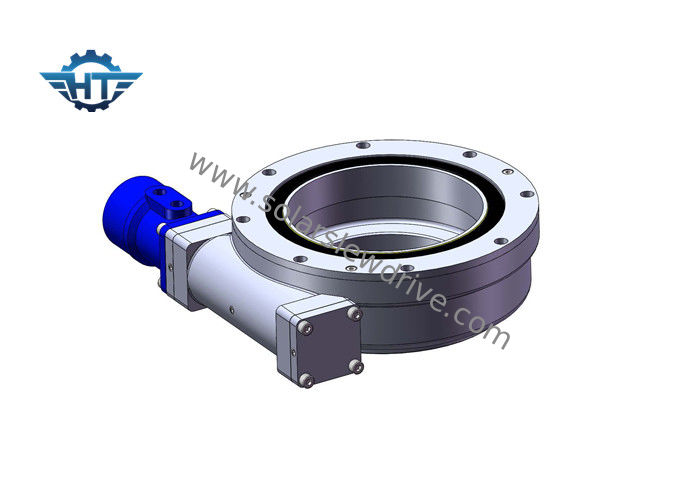

SE Series Hydraulic Slew Drive , Single Axis Worm Gear Slew Drive

SE Series Hydraulic Slew Drive , Single Axis Worm Gear Slew Drive

    • SE Series Hydraulic Slew Drive , Single Axis Worm Gear Slew Drive
    • SE Series Hydraulic Slew Drive , Single Axis Worm Gear Slew Drive
  • SE Series Hydraulic Slew Drive , Single Axis Worm Gear Slew Drive

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE1~SE25

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model: SE1~SE25 Gear Ratio: 31:1~150:1
    Application: Construction Machinery Place Of Origin: Changzhou, China
    Driver: Hydraulic Motor Certificate: ISO9001 / CE
    Maintenance: Free Backlash: <0.1
    High Light:

    hydraulic slew motor

    ,

    slewing gear



    SE Series Hydraulic Single Axis Worm Gear Slew Drive For Construction Machinery


    Product Description

    Model Number: SE9
    Condition: 100% new
    After-sales service: Engineers available to service machinery overseas
    Output Torque: 4.4 kN.m
    Tilting Moment Torque: 45 kN.m
    Holding Torque: 30.8 kN.m
    Static Axial Rating: 340 kN

    Static Radial Load: 130 kN
    Gear Ratio: 61:1
    Hydraulic Motor: 125CC,160CC, 200CC, 250CC
    Optional Items: DC, AC Motor, Encoder, Hall Sensor
    Delivery Time: Within 15 working days after order confirmed and payment received.

    For outdoor or indoor humid environment such as the seaside, desert etc., and SE enclosed series slewing drive is the optimized solution. With a fully sealed design can meet your field use requirements.


    SE Series Performance Parameter

    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    1” 32:1 400 1000 1800 22 12 40% ≤0.1 Yes 6
    3” 31:1 600 1500 3000 30 16 40% ≤0.1 Yes 8
    5” 37:1 800 6000 9200 68 27 40% ≤0.1 Yes 12
    7” 57:1 2000 13500 13200 132 58 40% ≤0.1 Yes 21
    9” 61:1 4400 45000 30800 340 130 40% ≤0.1 Yes 49
    12” 78:1 5800 54400 40560 480 190 40% ≤0.1 Yes 61
    14” 85:1 6550 68000 54200 680 230 40% ≤0.1 Yes 63
    17” 102:1 9400 135600 65040 980 390 40% ≤0.1 Yes 105
    21” 125:1 16000 203400 81000 1600 640 40% ≤0.1 Yes 149
    25” 150:1 21000 271160 89000 2400 950 40% ≤0.1 Yes 204



    Feature
    1) optimal design with enclosed housing, it is thinner, higher strength, and full sealed design, which suitable for use in the wild
    2) designed with full sealed which can effectively prevent corrosion of wind, sand, water on the device.

    3) self-locking



    Applications

    Enclosed SE series slewing drive is widely used in the construction machines and solar field as a rotation part. The main applications are as follows:


    1) Concentrated solar power, solar PV tracking power station
    2) Aerial platform
    3) Drive the crane truck arm
