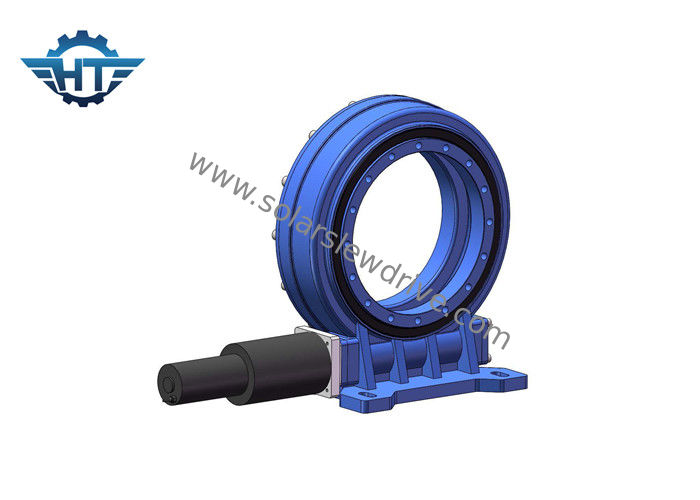

Big Load IP66 Dual Axis Slew Drive For Two Axis Solar Tracking System

Big Load IP66 Dual Axis Slew Drive For Two Axis Solar Tracking System

    • Big Load IP66 Dual Axis Slew Drive For Two Axis Solar Tracking System
    • Big Load IP66 Dual Axis Slew Drive For Two Axis Solar Tracking System
  • Big Load IP66 Dual Axis Slew Drive For Two Axis Solar Tracking System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE12

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Warranty: 5 Years
    Service: OEM Design Rotation: Two Axis
    Color: As Requested Installation Site: Roof And Field
    Packaging: Plywood Motor: Electric Motor
    High Light:

    slewing ring drive

    ,

    worm drive motor

    Big Load Dual Axis IP66 Slewing Drive For Dual Axis Solar Tracking System



    Description



    A dual-axis tracker allows your PV panels, fresnel, mirrors, concentrated PV, dish etc. to move on two directions, aligned both north-south and an east-west. This type of this system is designed to maximize your solar energy collection throughout the year. It can track seasonal variations in the height of the sun in addition to normal daily motion. It increases the productivity by a significant margin.



    Our dual axis slewing drive is a kind of power unit that can keep the solar panel facing the sun at any time and make the solar light irradiate the solar panel vertically at any time. It can hold large loads with a wide range of movement. The SDE slewing drive is a dual positioner that can be mounted on a combination of axes to offer a full range of movement.



    Performance Parameters of SDE Series

    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
    5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
    7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
    9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
    12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
    14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
    17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



    Advantages

     1. our dual axis slewing drive is specially designed for the application in the solar energy field. It can complete horizontal and vertical movement at the same time.

    2. our slewing drive can be attached with gear motor on the left side or right side.



    Application

    The most common slewing drive application for the dual-axis slewing drives are dual-axis solar trackers, such as heliostats and concentrated photovoltaics (CPV), and satellite or radar dishes. Other applications include automotive lifts, robotic arm positioners, and stage equipment.
