1 Inch Horizontal Rotary Speed Reducer Small Slew Drive With High Torque For Solar Energy

1 Inch Horizontal Rotary Speed Reducer Small Slew Drive With High Torque For Solar Energy

  • 1 Inch Horizontal Rotary Speed Reducer Small Slew Drive With High Torque For Solar Energy
  • 1 Inch Horizontal Rotary Speed Reducer Small Slew Drive With High Torque For Solar Energy
1 Inch Horizontal Rotary Speed Reducer Small Slew Drive With High Torque For Solar Energy
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE1
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~150/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 1 Inch Gear Ratio: 31:1
Efficiency: 40% Driver: Electric Motor
Type: Single Axis Application: Solar Tracker
OEM Service: Available Place Of Origin: Changzhou, China
High Light:

solar tracker drive

,

solar slew drive

1 Inch Horizontal Rotary Speed Reducer With High Torque For Solar Energy

Description

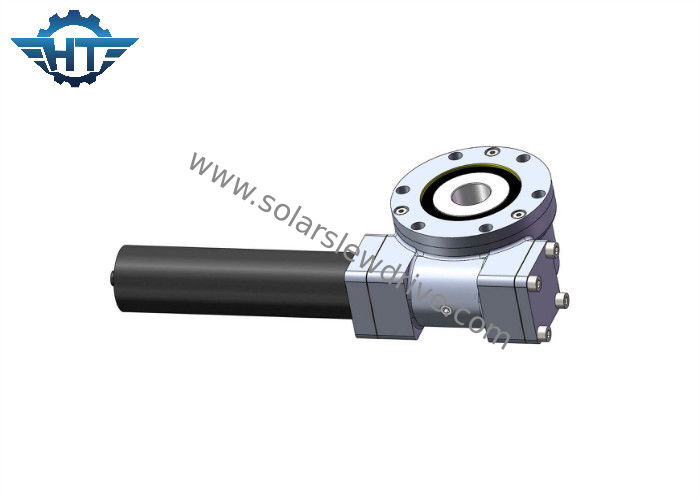

The slewing drive enables your solar tracking system to always follow the sun. You can use it horizontal, verticall or as a combination of horizontally and vertically mounted. The SE series slewing drive is a worm gear slewing drive consisting of hourglass worm, slewing ring, enclosed housing and other neccessary standard parts.



Specifications



Model Number SE1
Brand Name Hangtuo
Gear Ratio 32:1
Output Torque (Nm) 400
Tilting Torque (Nm) 1000
Holding Torque (Nm) 1800
Weight (kgs) 6
Axial Load (kN) 22
Radial Load (kN) 12
Working Temperature (℃) -30~+120
Place Of Origin Changshu, China (Mainland)
Inspect Full inspection
Processing Forging/machining/coating/assembly
Service 24 hours online



1 Inch Horizontal Rotary Speed Reducer Small Slew Drive With High Torque For Solar Energy 0



Additional Information



Min. Order Quantity 5 units, sample order available
Port China seaport ningbo/shanghai
Payment Terms L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time Lead time 20-40 days
Packaging Details Wooden case free from fumigation
