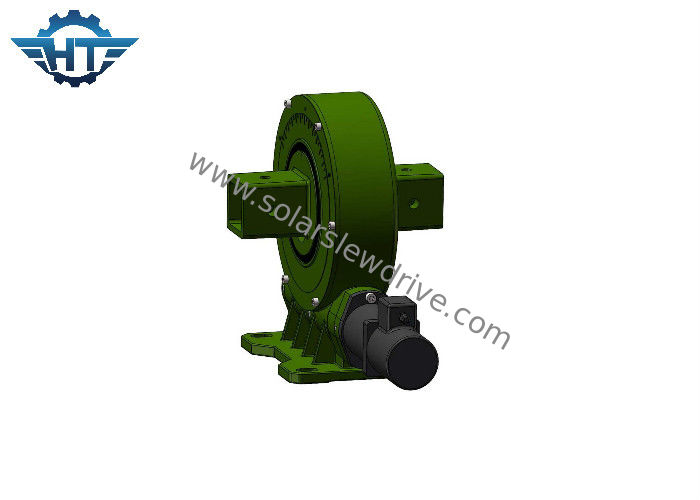

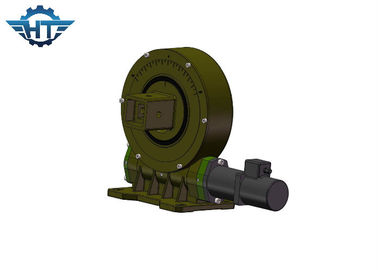

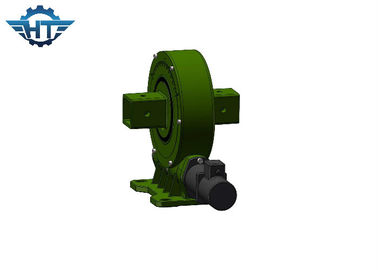

OEM VE9 Slew Drive Gearbox With Heavy Torque, Low Speed For Horizontal Single Axis Solar Tracker

OEM VE9 Slew Drive Gearbox With Heavy Torque, Low Speed For Horizontal Single Axis Solar Tracker

    • OEM VE9 Slew Drive Gearbox With Heavy Torque, Low Speed For Horizontal Single Axis Solar Tracker
    • OEM VE9 Slew Drive Gearbox With Heavy Torque, Low Speed For Horizontal Single Axis Solar Tracker
  • OEM VE9 Slew Drive Gearbox With Heavy Torque, Low Speed For Horizontal Single Axis Solar Tracker

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: VE5

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Output Torque: 800 Nm
    OEM: Available Tilting Torque: 5000 Nm
    Holding Torque: 9200 Nm Motor: 12V/24V DC
    Output Speed: Less Than 1 Rpm Packing: Plywood Case
    High Light:

    worm gear slew drive

    ,

    slewing ring gear

    OEM VE9 Slew Drive Gearbox With Heavy Torque, Low Speed For Horizontal Single Axis Solar Tracker



    Description



    There are two types of solar tracking system, single axis and dual axis tracking system.



    Single-axis solar trackers rotate on one axis moving back and forth in a single direction. Different types of single-axis trackers include horizontal, vertical, tilted, and polar aligned, which rotate as the names imply.



    The VE series and the SE series slewing drive are used in single axis solar tracking system.



    Dual-axis trackers continually face the sun because they can move in two different directions. Dual-axis tracking is follow the sun vertically and horizontally they help obtain maximum solar energy generation.



    Drivers



    Use electrical motors, 12vdc or 24vdc, nema, hydraulic motor and AC motor to drive the slewing drives, thus driving the system from one side to another.



    VE Model Technical Parameters



    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Self-locking Weight(kg)
    3" 31:1 600 1500 1800 22 15 40% Yes 12
    5" 37:1 800 5000 9200 16 27 40% Yes 18
    7" 57:1 1750 7000 13200 34 58 40% Yes 32
    8" 51:1 2250 11200 20400 50 80 40% Yes 28
    9" 61:1 2250 16000 30800 60 130 40% Yes 52
    12" 78:1 4300 25000 40560 77 190 40% Yes 65
    14" 85:1 5600 48000 44200 110 230 40% Yes 88
    17" 102:1 6750 67000 53040 142 390 40% Yes 135
    21" 125:1 16000 89000 65000 337 640 40% Yes 192
    25" 150:1 21450 112000 89000 476 950 40% Yes 251



    Applications



    The slewing ring bearings can be used for a wide range of applications. The areas of deployment range from excavators and cranes, opencast mining and wind turbines, to antenna. Other fields of application include engineering and solar tracking system.



    Q&A



    1. How can i choose?

    Please specify the wheel diameter size, width, voltage, power and no-load speed of the required motors.

    2. Could I take samples to test quality and market in advance?

    Sure, welcome to take samples to test our quality and service.



    3. What's the total cost for samples?

    Total sample cost= sample cost + freight

    We will give you the best shipping cost after you choose the suitable gear motors



    4. How do you ship samples?

    Considering sample quantity is not big, we support ship samples by EMS, TNT or Fedex

    5. What's your minimum order quantity?

    10 sets after samples confirmed

    6. What's your delivery time?

    For standard samples: within 7days; for batch orders: within 25 days.
