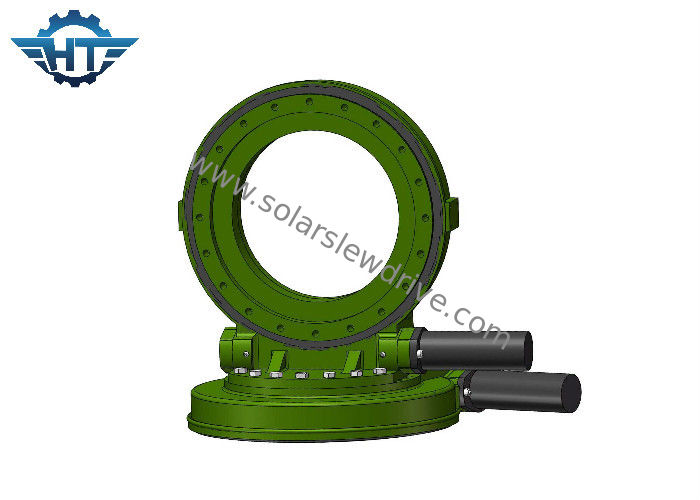

High Precision Dual Axis Slew Drive Gearbox For Heliostat Or Tower Concentrated Power Station

High Precision Dual Axis Slew Drive Gearbox For Heliostat Or Tower Concentrated Power Station

  • High Precision Dual Axis Slew Drive Gearbox For Heliostat Or Tower Concentrated Power Station
  • High Precision Dual Axis Slew Drive Gearbox For Heliostat Or Tower Concentrated Power Station
High Precision Dual Axis Slew Drive Gearbox For Heliostat Or Tower Concentrated Power Station
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1600/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 pcs per month
Contact Now
Detailed Product Description
Brand Name: Hangtuo Material: 50Mn, 42CrMo
OEM: Available Certificate: ISO9001, CE
Matched Motor: Electrical Motor Package: Plywood Case
Color: As Requirement Precision: ≤0.1°
High Light:

worm gear slew drive

,

slewing ring gear

High Precision Dual Axis Slew Drive Gearbox For Heliostat Or Tower Concentrated Power Station



Description



Welcome to purchase the high quality and functional dual axis slewing drive worm gear for sun tracking system from our company, one of the leading and professional manufacturers and suppliers in China.



We will test all of our products for quality and reliability. Our dual axis drives are engineered to create customized solutions with a 30-year field life. All our drives meet the standards set by ISO 9001, CE, certifications and our components and final assemblies are qualified.



Our dual axis slewing drives are designed to hold heavy loads and withstand high forces without breaking. Our drives are built with hourglass worm technology which increases gear engagement.



Qualilty Control



We plans to establish the most professional inspection laboratory in slewing driving industry.

Raw material inspection test: portable Sclerometer

Surface: Thickness Gauge

Electrical performance: motor torsion tester

Anti-errosion: salt spray test machine

Anti-aging: UV test machine

Thermal adapdation: high low temperature chamber

Other jigs & fixtures toolings



SDE Type Data Sheet



Model Ratio Rated Output Torque(N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Traceability



Customer feedback Contract No & Serial No.→Container No.→Production date→Key component lot No.→Key material certificate

                                                                                                                              →Inspection Report
