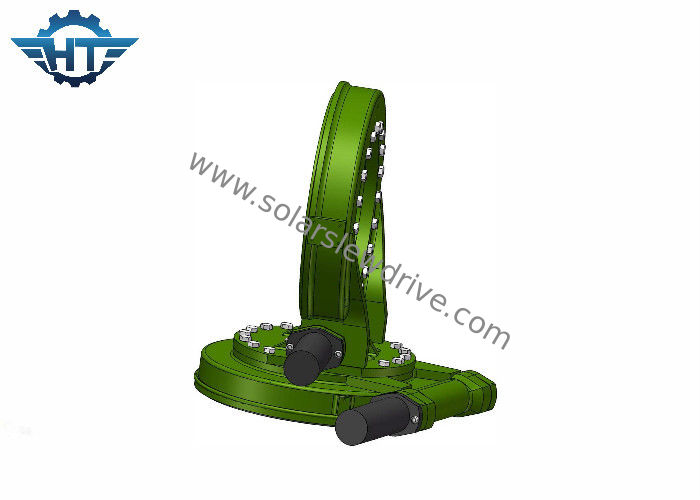

SDE7 Dual Axis Worm Gear Drive Gearbox With Self Locking Feature For PV Panel Solar Trackers
Description
7 inch 2 axis or dual axis Solar Tracker with slewing drive accuracy up to 0.1 deg and back structure for 15 pieces of solar panels dimensions 0,99 m x 1,64 m and weight of 20 kg max each. So together for 30 m2 solar panel surface.
Applications
PV panels
Concentrators - CPV, heliostats
On-grid at roof on houses, street light, cottages, small and large power plants
System Safety
Max. wind speed in operating in any working position is 20 m/s, if more higher wind speed, your system should be in safe position.
SDE Type Data Sheet
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque (N.m) | Holding Torque (N.m) | Axial Load (kN) | Radial Load (kN) | Efficiency | Precision (°) | Self-locking | Weight (kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Design for Product
We can provide all the standard products or specially design based on customer’ requirement.
