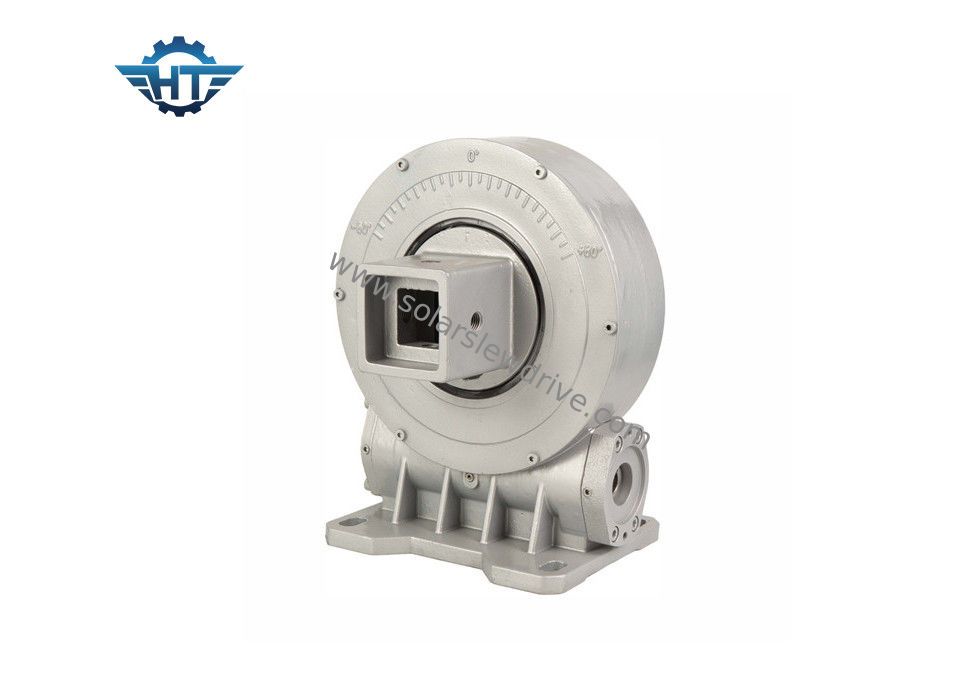

VE9 Enclosed Planetary Slew Drive Gearbox With Hourglass Worm For Solar Panel Tracking System

VE9 Enclosed Planetary Slew Drive Gearbox With Hourglass Worm For Solar Panel Tracking System

    • VE9 Enclosed Planetary Slew Drive Gearbox With Hourglass Worm For Solar Panel Tracking System
    • VE9 Enclosed Planetary Slew Drive Gearbox With Hourglass Worm For Solar Panel Tracking System
  • VE9 Enclosed Planetary Slew Drive Gearbox With Hourglass Worm For Solar Panel Tracking System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: 9 inch

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: 9 Inch
    Gear Ratio: 61:1 Efficiency: 40%
    Precise: ≤ 0.1 Driver: Electric Motor
    Color: As Requested Holding Torque: 30800 Nm
    High Light:

    worm gear slew drive

    ,

    slewing ring gear

    VE9 Enclosed Planetary Slew Drive Gearbox With Hourglass Worm For Solar Panel Tracking System



    Description



    Hangtuo have profound expert knowledge on designing, developing and manufacturing slewing drives. We have more than 10 years’ experience. Our team is specialized in researches and develops in that particular area. Our experience covers the fields of tracking technologies for photovoltaic systems, mechanical engineering, slewing drive technology.



    Quick Reaction Times



    Long-term experience in intelligent-process control for mass production as well as in customer-oriented product development.



    Product Advantages



    Slewing Drive (Enclosed Type, Vertical Type, Dual Axis Type, Precision Type) Hourglass worm slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.



    Stable Quality



    Set up Critical Quality Inspection Points, Total 9 positions through the plant. We set up critical quality inspection points , make quality inspection instructions to control strictly in key process. We use high precision & measurement gauge calibration.



    VE9 Enclosed Planetary Slew Drive Gearbox With Hourglass Worm For Solar Panel Tracking System 0

    Advanced measurement device



    VE9 Enclosed Planetary Slew Drive Gearbox With Hourglass Worm For Solar Panel Tracking System 1

    Measurement should be calibrated, check and only qualified gauge can be used.



    Technical Drawing



    For further detailed product technical parameters, contact us for product catalog and detailed sales drawings.



    Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
    3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
    5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
    7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
    8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
    9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
    12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
    14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
    17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



    Packaging and Shipping



    Inner Packaging: anti-rust plastic film ; vacuum plastic bags.

    Outer Packaging: hard carton; wooden case ; wood pallet.

    Shipping Term: by express; by air; by land; by sea.



    For samples, since the slew drive is with small dimension but heavy weight weight, it's not cost effective shipping by sea while the express shipping the cost-effective way, our logistitic staffs will asked TNT, DHL, UPS, FEDEX, to compare the express price in order to find the most cost effective way.



    If in bulk order in the future, we recommend ship by sea.
