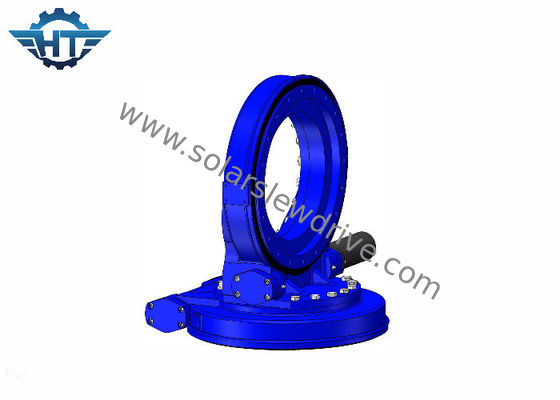

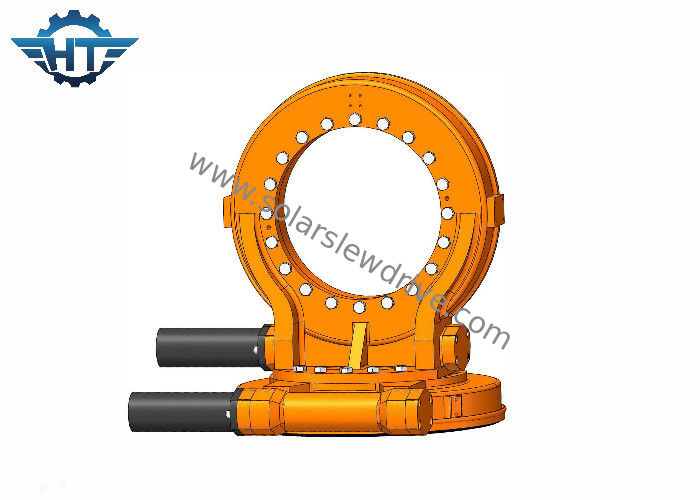

IP66 Slew Drive With Stepper Motor For Concentrated Tower , Heliostat Stations

IP66 Slew Drive With Stepper Motor For Concentrated Tower , Heliostat Stations

    • IP66 Slew Drive With Stepper Motor For Concentrated Tower , Heliostat Stations
    • IP66 Slew Drive With Stepper Motor For Concentrated Tower , Heliostat Stations
  • IP66 Slew Drive With Stepper Motor For Concentrated Tower , Heliostat Stations

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE12"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 500~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: SDE12
    OEM: Available Rotate Type: Two Axis
    Installation Site: Roof And Field Feature: Quick Installation
    Output Torque: 5800 Nm Tilting Torque: 25000 Nm
    Holding Torque: 40560 Nm
    High Light:

    slewing ring drive

    ,

    worm drive motor



    IP66 Dual Axis Slew Drive With Stepper Motor For Concentrated Tower, heliostat Stations



    Description



    The slew drives could be a help in the reasonable extrusion profiles and optimized structure, so to ensure the integrative structure is very strong and it overcomes the bending phenomenon occurrence



    Our slew drives' designs have passed the engineering analysis in three-dimension with high-reliability

    All the slew drives are adopted painting processing, that guarantee anti-trust for 25 years

    Our slew drives have small start torque, that makes work get twice the result with half the effort and the speed reduces and greatly extend the service life.



    Parameters of SDE12



    Usage

    Used for dual solar tracking system

    No. of axis

    Dual axis

    Size

    12 inch

    Certification

    CE/ISO

    Delivery date

    Within 15 days

    Output torque

    5800 N.m

    Tilting torque

    25000 N.m

    Back holding torque

    40560 N.m

    Gear Ratio

    78:1

    Service life

    >25 years

    Protection level

    IP66



    Packaging and Transport



    All slew drives will be packed with fumigration-free wooden case.

    Support sea transportation , air transportation, road transportation, express such as TNT, DHL,UPS,EMS, Fedex,etc for sample and small cargo transportation.
