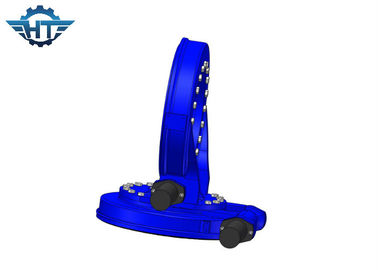

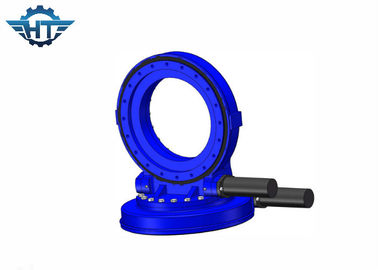

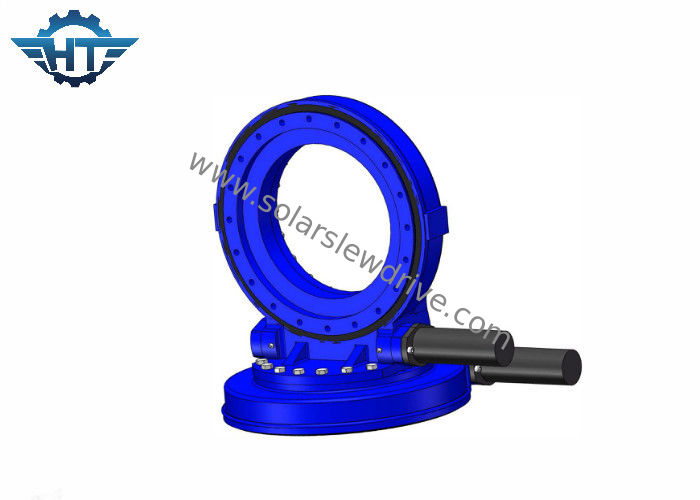

SDE Worm Slew Drive With 24VDC Planetary Motor For Two Axis PV, CPV And CSP

SDE Worm Slew Drive With 24VDC Planetary Motor For Two Axis PV, CPV And CSP

    • SDE Worm Slew Drive With 24VDC Planetary Motor For Two Axis PV, CPV And CSP
    • SDE Worm Slew Drive With 24VDC Planetary Motor For Two Axis PV, CPV And CSP
  • SDE Worm Slew Drive With 24VDC Planetary Motor For Two Axis PV, CPV And CSP

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: Dual Axis
    Feature: Quick Installation Motor: 24 V
    Application: PV, CPV, CSP Life Span: 30 Years
    Work Time: 24 Hours Size: SDE1~SDE21
    High Light:

    slewing ring drive

    ,

    worm drive motor



    SDE Worm Slew Drive With 24VDC Planetary Motor For Two Axis PV, CPV And CSP​



    Description



    There are two type of solar tracking system, single axis and dual axis solar tracking system. Usually we use vertical or horizontal single axis slew drive in the single tracking system while dual axis slew drives in the dual axis solar tracking system. Sometimes, two single axis slew drives can be also applied in the dual axis solar tracking system. Single axis trackers have one degree of freedom that acts as an axis of rotation. Dual axis trackers can move both east to west and north to west.



    Parameters of SDE7



    Usage

    Used for dual solar tracking system

    No. of axis

    Dual axis

    Size

    7 inch

    Certification

    CE/ISO

    Delivery date

    Within 15 days

    Output torque

    2000 N.m

    Tilting torque

    13500 N.m

    Back holding torque

    13200 N.m

    Gear Ratio

    57:1

    Service life

    30 years

    Protection level

    IP66

    Self-locking Yes
    Efficiency 40%
    Weight 21 kg



    Applications of Slewing Drives



    It can be no only used for solar tracking system, but also solar dish, PV, CPV ,CSP, wind turbine and satellite dish.



    They are designed for long life, working in hard environment conditions, various sizes available, including customized, easy to installation and product warranty.
