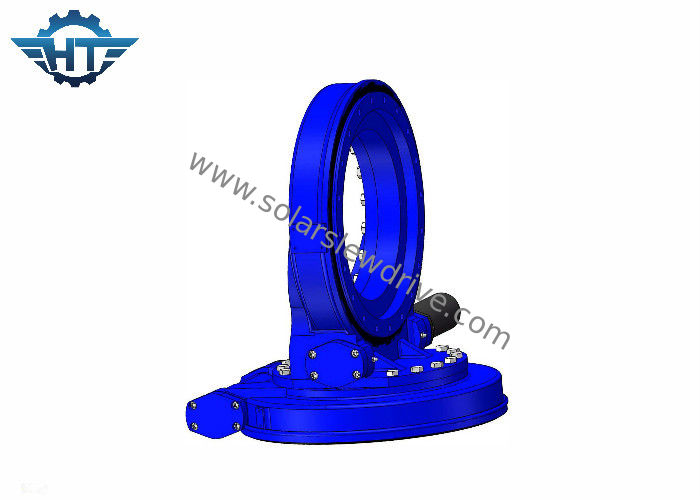

Dual Axis Worm Gear Slew Drive With 24vdc Gear Motor For Dual Axis Solar Trackers

Dual Axis Worm Gear Slew Drive With 24vdc Gear Motor For Dual Axis Solar Trackers

    • Dual Axis Worm Gear Slew Drive With 24vdc Gear Motor For Dual Axis Solar Trackers
    • Dual Axis Worm Gear Slew Drive With 24vdc Gear Motor For Dual Axis Solar Trackers
  • Dual Axis Worm Gear Slew Drive With 24vdc Gear Motor For Dual Axis Solar Trackers

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Warranty: 5 Years
    OEM: Available Rotate Type: Two Axis
    Color: Silver Grey Installation Site: Roof And Field
    Feature: Quick Installation Motor: 12V/24V DC
    High Light:

    slewing ring drive

    ,

    worm drive motor



    Dual Axis Worm Gear Slew Drive With 24vdc Gear Motor For Dual Axis Solar Trackers



    Description



    Dual axis slewing drive are usually installed in the dual axis solar tracking system. Compared with fixed solar tracking system, the tracking system is:



    1. Fully automatic tracking in a higher precision manner

    2. Approx 40% more power output than fixed tilt

    3. Yield increase with MPPT-Technology

    4. Apply soft start-up & brake control technology

    5. Adapt to install in the various kinds of terrain area

    6. Fast and simple installation and easy handling

    7. Lower power consumption & easy maintenance



    Dual Axis Worm Gear Slew Drive With 24vdc Gear Motor For Dual Axis Solar Trackers 0



    Parameters of SDE Series



    Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load (kN) Radial Load (kN) Weight (kg)
    3" 31:1 600 1500 5800 10 15 25
    5" 37:1 800 6000 9200 16 27 34
    7" 57:1 2000 7500 13200 34 58 56
    9" 61:1 4300 16000 27200 60 130 92
    12" 78:1 5800 25000 40560 77 190 160
    14" 85:1 6750 48000 44200 110 230 224
    17" 102:1 9460 67000 53040 142 390 320
    21" 125:1 16000 89000 65000 337 640 492
    25" 150:1 21450 112000 89000 476 950 705



    Applicable Areas



    Solar tracking system in mid-high latitude flat land, mountainous terrain, suitable for all types of modules, C-SI, A-SI, bi-facial modules.
