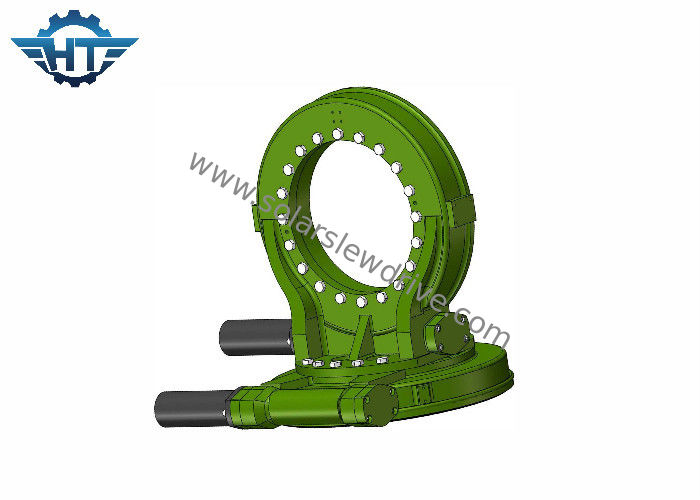

Self Locking Dual Axis Slew Drive Gear Reducer With 24V Electrical Planetary Gear Motor

Self Locking Dual Axis Slew Drive Gear Reducer With 24V Electrical Planetary Gear Motor

    • Self Locking Dual Axis Slew Drive Gear Reducer With 24V Electrical Planetary Gear Motor
    • Self Locking Dual Axis Slew Drive Gear Reducer With 24V Electrical Planetary Gear Motor
  • Self Locking Dual Axis Slew Drive Gear Reducer With 24V Electrical Planetary Gear Motor

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Model: Dual Axis Life Span: 30 Years
    Inspect Report: Yes Work Time: 24 Hours
    Warranty: 5 Years Application: New Energy
    Structure: Envelop Worm Self-lock: Yes
    High Light:

    slewing ring drive

    ,

    worm drive motor



    Self-locking Dual Axis Slew Drive Gear Reducer With 24V Electrical Planetary Gear Motor



    Description



    Dual axis solar tracking system adopts slewing drives as its rotation part, makes the tracking more easier, more reliable and more efficient.



    The slew drives supporting the structure has strong adaptability to different terrain. The dual axis tracker can be installed in hillside and marsh land without leveling ground also solves angular deviation during installation which facilitates generation efficiency.



    1. Efficient, reliable

    2. Can be installed in any place

    3. Water proof, anti-rust surface



    Self Locking Dual Axis Slew Drive Gear Reducer With 24V Electrical Planetary Gear Motor 0



    Parameters



    Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
    3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
    5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
    7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
    9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
    12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
    14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
    17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
    21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
    25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



    Main Features



    1) Power generation efficiency increased by 35%~40%.

    2) Simple structure, easy in installation and debugger application.

    3) Adopting advanced quality raw materials

    4) Adapt to outdoor environment,working temperature -50~80C°.

    5) Running in a high automation and intelligence,no pollution.

    6) Plastic powder painting will ensure 25 years service life.
