Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 100~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | Dual Axis |
|---|---|---|---|
| Feature: | Quick Installation | Life Span: | 30 Years |
| Inspect Report: | Yes | Work Time: | 24 Hours |
| Voltage: | 24V | Warranty: | 5 Years |
| High Light: | slewing ring drive,worm drive motor |
||

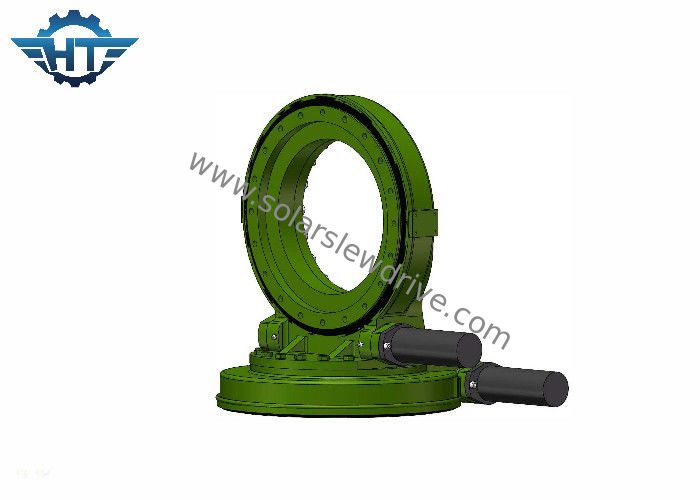

Enclosed Self-locking Dual Axis Slew Drive With Gear Motor For Dual Axis Solar Trackers
Description
Our dual axis slewings are applied in dual axis solar tracking system.
The dual axis solar trackers have two automatic axis to track the sun in east-west direction and south-north direction automatically from sunrise to sunset every day.
Our slewing drives are designed for long life, working in hard environment conditions. Various sizes available, including customized. Easy to installation and product warranty.
Parameters
| Model | Ratio | Rated Output Torque(N.m) | Tilting Torque(N.m) | Holding Torque(N.m) | Axial Load(kN) | Radial Load(kN) | Efficiency | Precision(°) | Self-locking | Weight(kg) |
| 3" | 31:1 | 600 | 1500 | 5800 | 10 | 15 | 40% | ≤0.1 | Yes | 25 |
| 5" | 37:1 | 800 | 6000 | 9200 | 16 | 27 | 40% | ≤0.1 | Yes | 34 |
| 7" | 57:1 | 2000 | 7500 | 13200 | 34 | 58 | 40% | ≤0.1 | Yes | 56 |
| 9" | 61:1 | 4300 | 16000 | 27200 | 60 | 130 | 40% | ≤0.1 | Yes | 92 |
| 12" | 78:1 | 5800 | 25000 | 40560 | 77 | 190 | 40% | ≤0.1 | Yes | 160 |
| 14" | 85:1 | 6750 | 48000 | 44200 | 110 | 230 | 40% | ≤0.1 | Yes | 224 |
| 17" | 102:1 | 9460 | 67000 | 53040 | 142 | 390 | 40% | ≤0.1 | Yes | 320 |
| 21" | 125:1 | 16000 | 89000 | 65000 | 337 | 640 | 40% | ≤0.1 | Yes | 492 |
| 25" | 150:1 | 21450 | 112000 | 89000 | 476 | 950 | 40% | ≤0.1 | Yes | 705 |
Export Worldwide
Our clients distribute widely, like in Germany, Norway, Poland, Finland, Spain, UK, France, Russia,USA, Canada, Brazil, Mexico, Australia, Japan, Thailand, Indonesia, Uruguay and many other countries.
We provide the following services to our clients:
1. Finding the right products well suited your requests ( not only cheaper).
2. Providing Report with the real information.
3. Making sure the process of production is according to industrial standard.
4. Providing OEM
5. 24 hours service online
Contact Person: Jessie
Tel: +86 18800586965
