Providing Innovative and Cost-effective Slewing Drives
 |
| Place of Origin: | China |
| Brand Name: | HangTuo |
| Certification: | CE, ISO9001 |
| Model Number: | SDE17" |
| Minimum Order Quantity: | 1 piece |
|---|---|
| Price: | USD 1190~1600/ pc |
| Packaging Details: | plywood box |
| Delivery Time: | 15~45 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 500 pcs per month |
| Material: | 50Mn, 42CrMo | Model: | SDE17 |
|---|---|---|---|
| Rotate Type: | Dual Axis | Feature: | Quick Installation |
| Output Torque: | 9460 Nm | Tilting Torque: | 67000 Nm |
| Holding Torque: | 53040 Nm | Life Span: | 30 Years |
| Inspect Report: | Yes | Work Time: | 24 Hours |
| High Light: | slewing ring drive,worm drive motor |
||

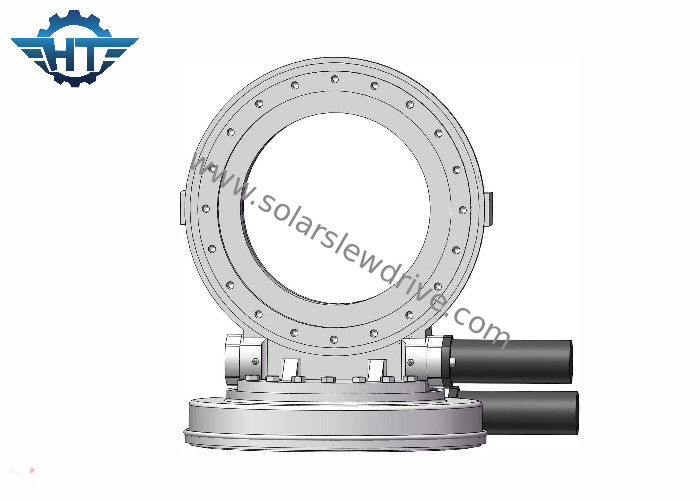

Enclosed Dual Axis Worm Slew Gear With Gear Motor For Dual Axis Solar Trackers
Description
The dual axis solar tracker solar panels tracking system uses high-precision astronomy algorithm to calculate the angle of the sun, combined with high-performance microcontroller, and high presision slewing drives, making the system accurate and reliable, not rainy days interference,using international first-line brand tilt sensor, real-time closed-loop feedback tracking angle, automatic tracking, without human intervention.
Dual axis solar tracker solar panels tracking system than the solar mounting system to increase power generation 35 ~ 40%.
Parameters of SDE17
|
Usage |
Used for dual solar tracking system |
|
No. of axis |
Dual axis |
|
Size |
17 inch |
|
Certification |
CE/ISO |
|
Delivery date |
Within 15 days |
|
Output torque |
9460 N.m |
|
Tilting torque |
67000 N.m |
|
Back holding torque |
53040 N.m |
|
Gear Ratio |
102:1 |
|
Service life |
30 years |
|
Protection level |
IP65 |
| Self-locking | Yes |
| Efficiency | 40% |
| Weight | 320 kg |
Packaging and Transport
Q: HOW LONG IS YOUR DELIVERY TIME?
A: Generally 7~15 days if the goods are in stock. or it is 20~30 days if the goods are not in stock, also it is
based on quantity.
Q: Does any country support T/T,L/C,D/A,D/P,Western Union,Money Gram?
A: Our payments vary according to different countries and regions.
Q: What is your terms of payment ?
A: Payment<=10000 USD, 100% in advance. Payment>=10000 USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below ...
