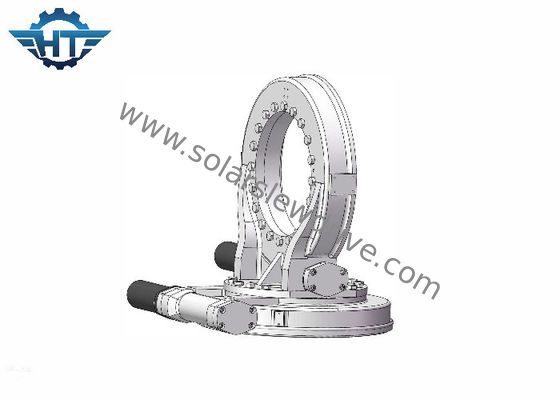

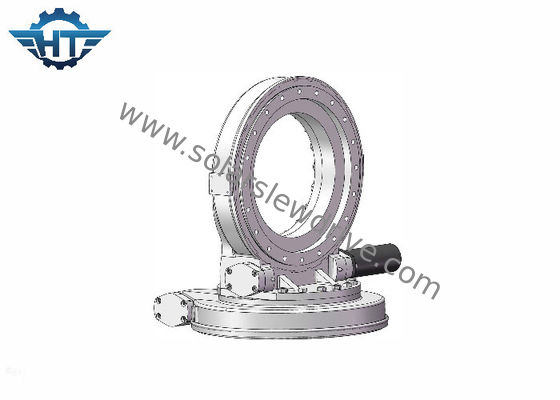

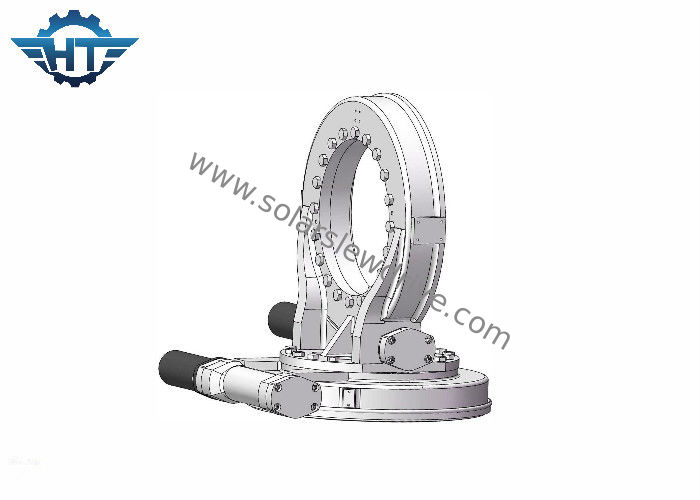

SDE17 Worm Gear Slew Drive With Gear Motor For Dual Axis Solar Tracking System

SDE17 Worm Gear Slew Drive With Gear Motor For Dual Axis Solar Tracking System

    • SDE17 Worm Gear Slew Drive With Gear Motor For Dual Axis Solar Tracking System
    • SDE17 Worm Gear Slew Drive With Gear Motor For Dual Axis Solar Tracking System
  • SDE17 Worm Gear Slew Drive With Gear Motor For Dual Axis Solar Tracking System

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SDE17"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 1190~1600/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 500 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: SDE17
    OEM: Available Rotate Type: Two Axis
    Installation Site: Roof And Field Feature: Quick Installation
    Output Torque: 9460 Nm Tilting Torque: 67000 Nm
    Holding Torque: 53040 Nm
    High Light:

    slewing ring drive

    ,

    worm drive motor



    SDE17 Dual Axis Worm Slew Gear With Gear Motor For Dual Axis Solar Tracking System



    Description



    Solar tracking system is a photovoltaic system that can automatically track the sun and increase the overall power generation,which in the process of photothermal and photovoltaic power generation optimize the use of sunlight to improve the photoelectric conversion efficiency of mechanical and electrical control unit system, including: drive structure (rotary reducer, electric push rod, worm gear and worm, etc.), controller, tracking bracket, sensor (inclination sensor, limit sensor), etc.
    Dual axis solar tracker than the solar mounting system to increase power generation 30 ~50%.
    Single axis solar tracker than the solar mounting system to increase power generation 15 ~ 30%.



    The dual axis slew drives are applied in the dual axis solar tracking system.



    Parameters of SDE17



    Usage

    Used for dual solar tracking system

    No. of axis

    Dual axis

    Size

    17 inch

    Certification

    CE/ISO

    Delivery date

    Within 15 days

    Output torque

    9460 N.m

    Tilting torque

    67000 N.m

    Back holding torque

    53040 N.m

    Gear Ratio

    102:1

    Service life

    30 years

    Protection level

    IP65



    Packaging and Transport



    All slew drives will be packed with fumigration-free wooden case.

    Support sea transportation , air transportation, road transportation, express such as TNT, DHL,UPS,EMS, Fedex,etc for sample and small cargo transportation.



    Mounting Suggestions



    1. Horizontal installation

    It is advised to mount slewing drives perpendicular to the azimuth axis in solar applications for better protection



    2. Vertical installation

    It is advised to mount slewing drives referring to the following pic in solar applications if needed.



    SDE17 Worm Gear Slew Drive With Gear Motor For Dual Axis Solar Tracking System 0
