High Holding Torque Worm Gear Slew Drive With IP66 Enclosure For Solar Energy

High Holding Torque Worm Gear Slew Drive With IP66 Enclosure For Solar Energy

  • High Holding Torque Worm Gear Slew Drive With IP66 Enclosure For Solar Energy
  • High Holding Torque Worm Gear Slew Drive With IP66 Enclosure For Solar Energy
High Holding Torque Worm Gear Slew Drive With IP66 Enclosure For Solar Energy
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 330~360/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model Number: SE14 Holding Torque: 54200 Nm
Tilting Torque: 68000 Nm Output Torque: 6550 Nm
Static Axial Load: 680 KN Static Radical Load: 230 KN
Raw Material: 50Mn, 42CrMo Weight: 63 Kg
High Light:

hydraulic slew motor

,

solar tracker drive



High Holding Torque Worm Gear Slew Drive With IP66 Enclosure For Solar Energy



Product Description



Our enclosed housing slewing drive consists of the housing, slewing ring with external gear, hourglass worm, and other spare parts. Also we can provide electric motor or hydraulic motor to match with slewing drive , it will used for the power input source to make slewing drive to achieve clockwise and counterclockwise rotation. Our enclosed housing slewing drive can prevent the water and dust and is very suitable for used in outside. We have three types, SE, VE and SDE series slew drives, VE series are mostly applied in solar tracking system, parabolic concertrated power, while the SE series are mostly applied in construction machinery. The SDE series are dual axis slew drives, they can help the solar system to track the sun at any time and at any direaction. They has been exported to more than 40 countries, and we can also provide customized slewing drive in accordance with customers' requirements.



High Holding Torque Worm Gear Slew Drive With IP66 Enclosure For Solar Energy 0

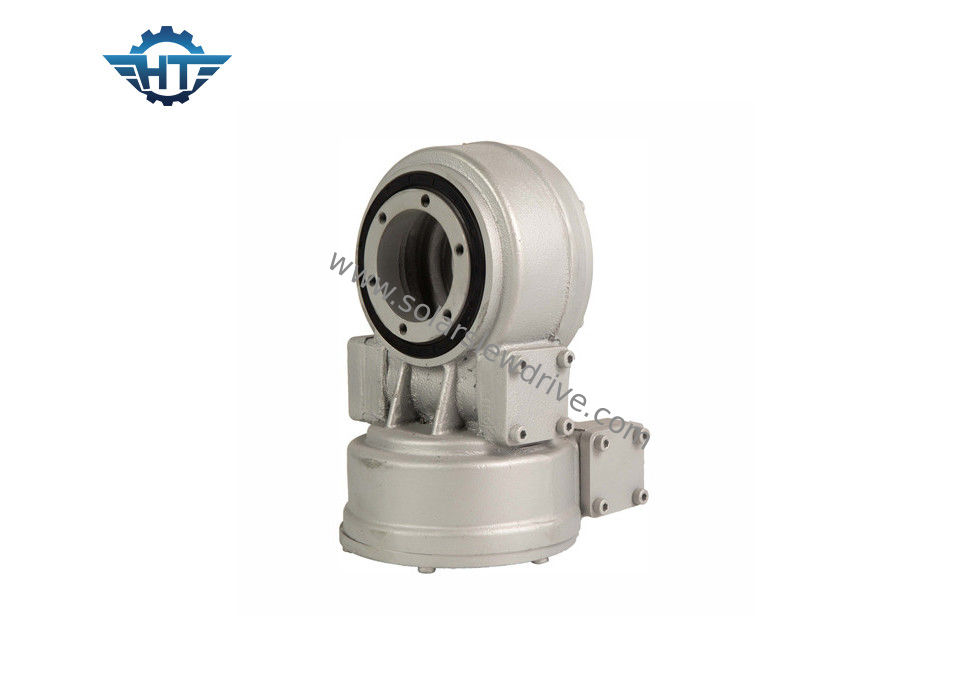

Performace of SDE Series



Model Ratio Rated Output Torque (N.m) Tilting Torque (N.m) Holding Torque (N.m) Axial Load(kN) Radial Load (kN) Efficiency Precision (°) Self-locking Weight (kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Application



SDE series is an enclosed housing slew drive with IP66 enclosure protection level. It is designed with an hourglass worm shaft with 5 teeth in contact between the slew ring and the worm shaft. This design offers a very solid back holding torque capacity for the heavy loads. Solar energy, CSP, CPV, satellite antenna and many more industries with high contamination of fine particle environment prefer this drive for its tightness. It is also the choice for most of outdoor installations subjected to heavy rain and snow as it is well sealed compared to other designs.
