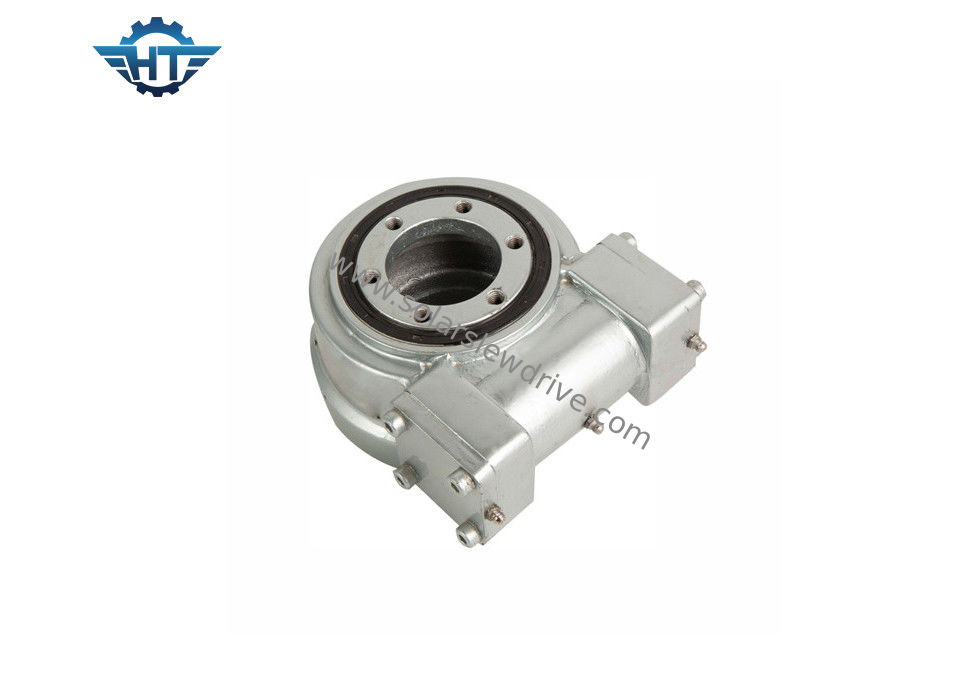

Horizontal Slew Drive Gearbox With 24v Dc Motor For Photovoltaic Power Station

Horizontal Slew Drive Gearbox With 24v Dc Motor For Photovoltaic Power Station

  • Horizontal Slew Drive Gearbox With 24v Dc Motor For Photovoltaic Power Station
  • Horizontal Slew Drive Gearbox With 24v Dc Motor For Photovoltaic Power Station
Horizontal Slew Drive Gearbox With 24v Dc Motor For Photovoltaic Power Station
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SE
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 100~1175/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: SE Self-lock: Yes
Certificate: ISO9001,CE Warranty: 5~10 Years
Material: 50Mn,42CrMo Application: Industrial
Color: Customized Accuracy: ≤0.1
High Light:

hydraulic slew motor

,

solar tracker drive



Horizontal Slew Drive Gearbox With 24v Dc Motor For Photovoltaic Power Station



Product Description



A slewing drive is also called slewing bearing drive or slewing reducer, etc. It is typically used in aerospace area, solar power systems, wind turbines, satellite broadcasting system, and engineering machinery like truck cranes, and man lifts, etc. Recent years, it has been prosperously used in photovoltaic power generation systems.



When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual area of solar panels. 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2 solar panel, 7 inch for 10-17 m2 solar panel, 9 inch for 18-30 m2, 12 inch for 31-45 m2, and 14 inch for 46-60 m2. These are provided for your reference. For more specific and detailed information, please contact me directly.



Performace of SE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 1800 22 15 40% ≤0.1 Yes 12
5" 37:1 800 5000 9200 16 27 40% ≤0.1 Yes 18
7" 57:1 1750 7000 13200 34 58 40% ≤0.1 Yes 32
8" 51:1 2250 11200 20400 50 80 40% ≤0.1 Yes 28
9" 61:1 2250 16000 30800 60 130 40% ≤0.1 Yes 52
12" 78:1 4300 25000 40560 77 190 40% ≤0.1 Yes 65
14" 85:1 5600 48000 44200 110 230 40% ≤0.1 Yes 88
17" 102:1 6750 67000 53040 142 390 40% ≤0.1 Yes 135
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 192
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 251



A slewing drive is usually composed of a gear, worm, housing, base and standard components like bolts, etc. While used in photovoltaic power generation system, the slewing drive is usually used in combination with DC planetary gear motor and AC reducer motor. While used in engineering equipment, it is regularly used in combination with hydraulic motor to function as power driving system.



Installation



It can be mounted vertically or horizontally based on the evalution of the protection level and the installation demand of the project.
