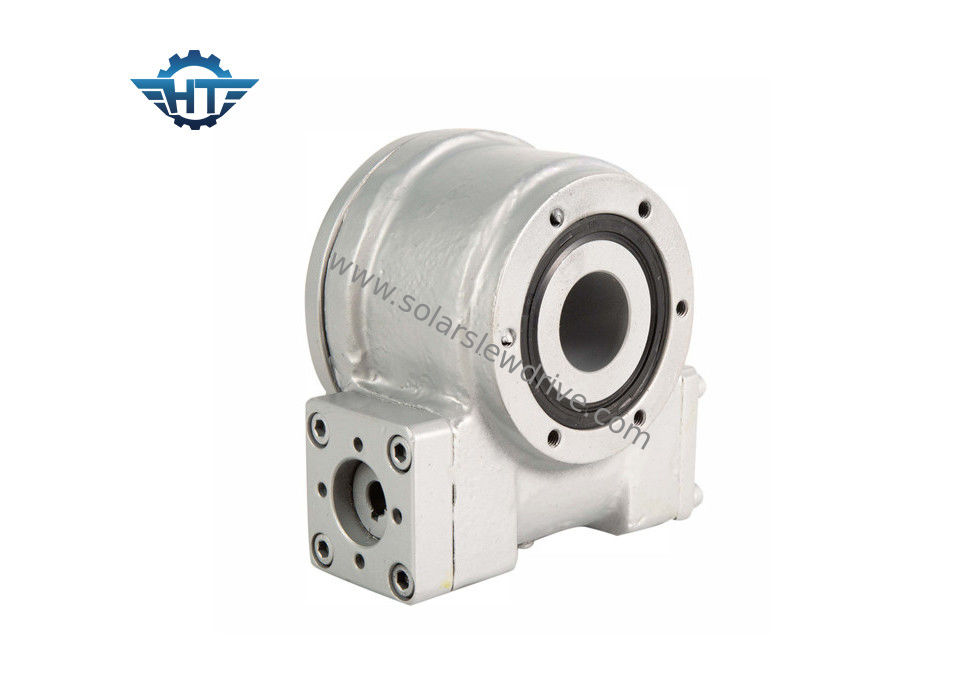

SE3 Solar Slew Drive Enclosed Housing With 24vdc Planetary Motor For Solar Tracker And CSP

SE3 Solar Slew Drive Enclosed Housing With 24vdc Planetary Motor For Solar Tracker And CSP

    • SE3 Solar Slew Drive Enclosed Housing With 24vdc Planetary Motor For Solar Tracker And CSP
    • SE3 Solar Slew Drive Enclosed Housing With 24vdc Planetary Motor For Solar Tracker And CSP
  • SE3 Solar Slew Drive Enclosed Housing With 24vdc Planetary Motor For Solar Tracker And CSP

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE3"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 330~360/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Model Number: SE3 With Motor Holding Torque: 3000 Nm
    Tilting Torque: 1500 Nm Output Torque: 600 Nm
    Static Axial Load: 30 KN Static Radical Load: 16 KN
    Raw Material: 50Mn, 42CrMo Weight: 10.5 Kg
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive



    SE3 Solar Slew Drive Enclosed Housing With 24vdc Planetary Motor For Solar Tracker And CSP



    Product Description



    The slewing drive is a new type of slewing product, usually called slewing ring, which is usually composed of worm, slewing ring, housing, motor and other components. Since the core components are slewing bearings, they can simultaneously withstand axial forces, radial forces, and overturning moments. Compared with traditional rotary products, the new rotary drive features easy installation, easy maintenance and a greater degree of installation space.



    Slewing drive are widely used in PV,CPV solar tracking systems, construction applications including truck cranes, manlifts, turntables, port machinery, modular vehicles, small wind power systems and satellite communications and concentrated solar power (CSP).



    Model SE3 with 24VDC motor
    Ratio 31:1
    Rated Output Torque (N.m) 600
    Rated Rotate Speed (RPM) 0.065
    Tilting Torque (N.m) 1500
    Holding Torque (N.m) 3000
    Axial Load (kN) 30
    Radial Load (kN) 16
    Efficiency 40%
    Precision (°) 0.1
    Self-locking Yes
    Weight (kg) 10.5
    Installation Holes 6*M10
    Center Circle Diameter Φ 80 mm
    Inner Hole Φ 65 mm
    Work Temperature - 30℃ ~+80℃ (optional special grease used in colder or hotter places)
    Gear Motor Matched 24V, 2RPM, 30W, 43Nm, <3A
    Warranty Policy Slew drive 5 years, motor 1 year, warranty extension available



    Our Packing & Transport



    Packing:

    1. Normal export package: packed with fumigration-free wooden case

    2. According to clients' special requirements.

    Shipping:

    1. Sea transportation: shipping FCL or shipping LCL, this is the most common way

    2. Land transportation: this is suitable for the inland countries

    3. Air transportation

    4. Express: DHL,TNT,UPS,Fedex etc.

    Support sea transportation , air transportation, road transportation, Express such as TNT, DHL,UPS,EMS, Fedex,etc for sample and small cargo transportation.



    Application



    Solar power system, CSP, CPV, truck crane, aerial work vehicle, welding positioner, sprayer, automatic pipeline, wiping window machine, sensitive medical equipment etc.
