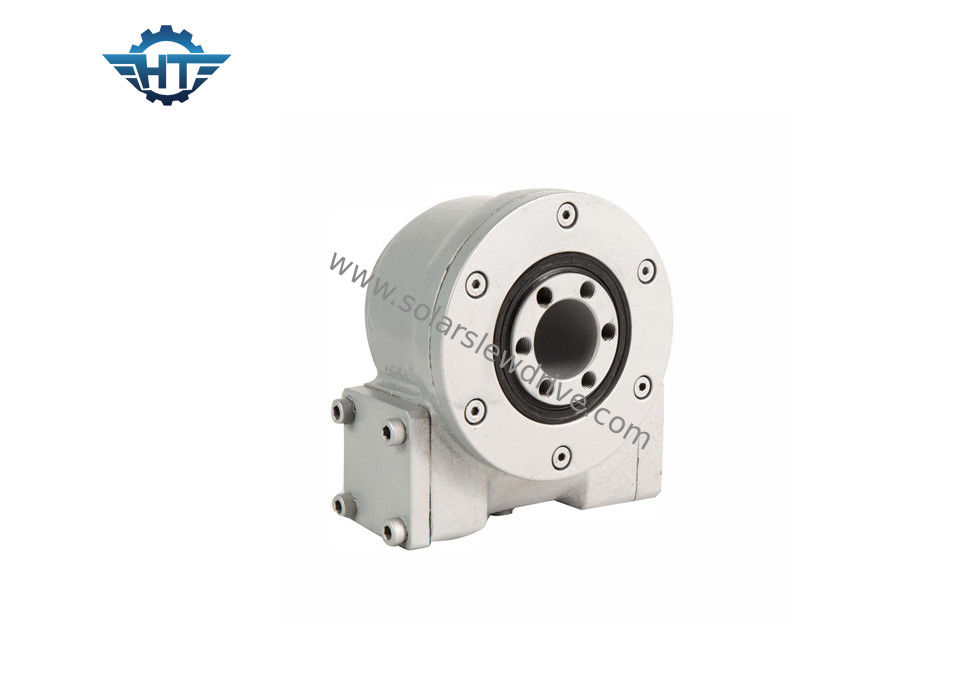

SE1 Worm Gear Slew Drive For Solar Tracker With 24vdc Electrical Motors

SE1 Worm Gear Slew Drive For Solar Tracker With 24vdc Electrical Motors

    • SE1 Worm Gear Slew Drive For Solar Tracker With 24vdc Electrical Motors
    • SE1 Worm Gear Slew Drive For Solar Tracker With 24vdc Electrical Motors
  • SE1 Worm Gear Slew Drive For Solar Tracker With 24vdc Electrical Motors

    Product Details:

    Place of Origin: China
    Brand Name: HangTuo
    Certification: CE, ISO9001
    Model Number: SE1"

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: USD 100~155/ pc
    Packaging Details: plywood box
    Delivery Time: 15~45 days
    Payment Terms: L/C, T/T, Western Union
    Supply Ability: 2000 pcs per month
    Contact Now
    Detailed Product Description
    Material: 50Mn, 42CrMo Model: SE1
    Gear Ratio: 32:1 Output Torque: 400Nm
    Holding Torque: 1800 Nm Tilting Torque: 1000Nm
    High Light:

    hydraulic slew motor

    ,

    solar tracker drive



    SE1 Worm Gear Solar Slew Drive With 24vdc Electrical Motors For Pv Solar Tracking System



    Product Description



    For slewing drive, there are ten (10) different sizes available from 1" to 25" with more than 40 models to meet both regular and precise tracking requirements in PV, CPV and solar thermal power tracking fields.

    SE1 Worm Gear Slew Drive For Solar Tracker With 24vdc Electrical Motors 0

    Hangtuo has strict quality control system in our own factory, meanwhile, we have passed ISO9001-2008 quality system certification and JG/T67-1991,JB/T2300-1999 with our country’s engineering & machinery standards.



    Our Advantages



    1. ISO 9001:2008 certificate

    2. High qualified material, low MOQ, excellent quality, competitive price

    3. Standard or non-standard both are acceptable

    4. OEM available

    5. Stronger loading capacity, huge axial and radical force capacity

    6. Independent R&D team

    7. Strict QA, QC management

    8. Sufficient stock

    9. Short lead time, fast delivery time



    Parameters of SE1



    Model SE1
    Ratio 32:1
    Rated Output Torque (N.m) 384
    Max Output Torque (3 sec)(N.m) 460
    Rated Rotate Speed (RPM) 0.06
    Tilting Torque (N.m) 1500
    Holding Torque (N.m) 3000
    Axial Load (kN) 30
    Radial Load (kN) 16
    Efficiency 40%
    Precision (°) 0.1
    Self-locking Yes
    Weight (kg) 6
    Installation Holes 6*M8
    Center Circle Diameter Φ 40 mm
    Inner Hole Φ 30 mm
    Work Temperature - 30℃ ~+80℃ (optional special grease used in colder or hotter places)
    Gear Motor Matched 24V, 2RPM, 25W, 30Nm, <8A


    Remark:



    1. For more detailed dimensions and parameters, please refer to our sales drawings.

    2. Special design based on different applications and projects
    3. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
    4. Different colors are available based on RAL code; our standard color is RAL 9006.



    Application



    Mining machine, port hoisting machine, port oil transfer equipment onshore and offshore crane, excavator, concrete machine, paper machine, plastic and rubber machine, weave machine, filling macine, steel plant, electronic power plant, wind power generator, other construction and industry machine or equipment etc.
