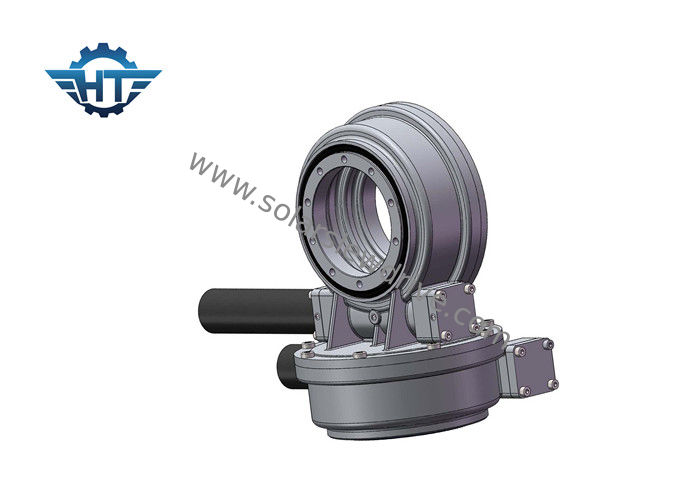

High Holding Torque Worm Drive Slewing Drive For Solar Tracking System With Gear Motor

High Holding Torque Worm Drive Slewing Drive For Solar Tracking System With Gear Motor

  • High Holding Torque Worm Drive Slewing Drive For Solar Tracking System With Gear Motor
  • High Holding Torque Worm Drive Slewing Drive For Solar Tracking System With Gear Motor
High Holding Torque Worm Drive Slewing Drive For Solar Tracking System With Gear Motor
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 398~456/ pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SDE7"
Gear Ratio: 57:1 Rated Output Torque: 2000 Nm
Holding Torque: 13500 Nm Tilting Torque: 13200 Nm
Efficiency: 40% Standard Color: RAL 9006
High Light:

slewing ring drive

,

worm drive motor





High Holding Torque Worm Drive Slew Drive With 12vdc Gear Motor For Solar Tracking System



Description



For a dual axis solar tracking system, based on differenct bracket structure, three types of slew drives solutions could be applied:



1. use two horizontal (se type) single axis slew drives.

2. use one horizontal (se type) and another vertical (ve type).

3. use a dual axis slew drive.



All of those solutions can achieve tracking the sun both vertically and horizontally, that means tracking the sun all the time with direct sunlight.



Slew Drives Applied In Dual Axis Solar Tracker



Product Name SDE7 Slew Drives
Output Torque 980 N.m ; 723 ft.lbs
Max Output Torque 1938 N.m; 1429 ft.lbs
Tilting Moment Torque 7000 N.m; 5163 ft.lbs
Holding Torque 13200 N.m ; 9736 ft.lbs
Static Axial Rating 133.20 kN ; 29943 lb
Static Radial Rating 53 kN ; 11977 lb
Dynamic Axial Rating 31.90 kN ; 7171 lb
Dynamic Radial Rating 27.91 kN ; 6274 lb
Motor Alternatives 12/24/48VDC Motor; Stepper Motor; Brushless Motor
Products Style Dual Axis; CPV/HCPV; Solar Dish; Solar Tower
Application Feature Solar Tracking System, Industrial Machiner
Recommended Square of Panel 30 square meters



SDE Slew Drives Performance Table



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 21kg
5" 37:1 650 5000 16 27 9200 40% ≤0.1 Yes 32kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 54kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 88kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 157 kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 214kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 315kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 481kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 682 kg



Applicatons



High Holding Torque Worm Drive Slewing Drive For Solar Tracking System With Gear Motor 0



Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
