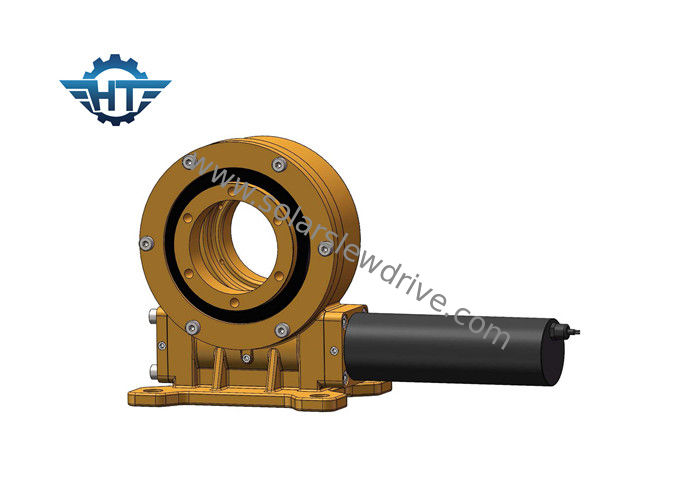

Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor

Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor

  • Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor
  • Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor
Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor
Product Details:
Place of Origin: CHINA
Brand Name: HANGTUO
Certification: CE, ISO9001
Model Number: VE5
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Price: 145~226 USD/PC
Packaging Details: PLYWOOD BOX
Delivery Time: 15~30 DAYS
Supply Ability: 12000 PCS/YEAR
Contact Now
Detailed Product Description
Type: Slewing Drive Material: 42CRMN Or 50Mn
Application: Solar Power System Warranty: 10 Years
Color: Customer Required Size: 3 Inch - 25 Inch
Motor: 24V Feature: Long Life
High Light:

slewing drive for solar tracking system

,

solar tracker drive

Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor For Fresnel And Parabolic



Description



Photovoltaic power station tracking includes flat single-axis linkage, oblique single-axis linkage, oblique single-axis, and two-axis tracking system.

Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor 0

1. Flat single axis linkage

Suitable for latitudes below 30 degrees and ground slopes less than 12 degrees.

Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor 1



2. Oblique single axis linkage

Suitable for medium to high latitudes, the ground needs to be approximately flat.

Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor 2



3. Oblique single-axis unit

Suitable for medium to high latitudes.

Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor 3



4. Dual axis

Single Axis Solar Tracker Slew Drive Axis With 24vdc Electrical Motor 4



Features



1. Rotate from 0~180°

2. Connect a driving motor on the left or right side

3. Grease had been filled before factory

4. Simple installation

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping

8. High backholding torque, suitable for vertical installation

9. Low maintenance



Vertical Slew Drive Performance Parameters



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg
