VE7 Vertical Single Worm Gear Slew Drive For Horizontal Single Axis Solar Tracking System

VE7 Vertical Single Worm Gear Slew Drive For Horizontal Single Axis Solar Tracking System

  • VE7 Vertical Single Worm Gear Slew Drive For Horizontal Single Axis Solar Tracking System
  • VE7 Vertical Single Worm Gear Slew Drive For Horizontal Single Axis Solar Tracking System
VE7 Vertical Single Worm Gear Slew Drive For Horizontal Single Axis Solar Tracking System
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: VE7"
Gear Ratio: 57:1 Rated Output Torque: 1750Nm
Holding Torque: 13200Nm Tilting Torque: 7000Nm
Efficiency: 40% Standard Color: RAL 9006
High Light:

slewing drive for solar tracking system

,

solar tracker drive

Vertical Series Worm Gear Slew Drive With 24VDC Gear Motors For Single Axis Solar Tracking System

Description

Vertical mounted slew drives are specifically designed for solar tracking systems that require horizontal axis tracking. The precise rotation of the vertical slew drive allows the mechanism to track perfectly. This kind of vertical slewing ring drive is manufactured using the latest technology which incorporates hourglass mechanism.

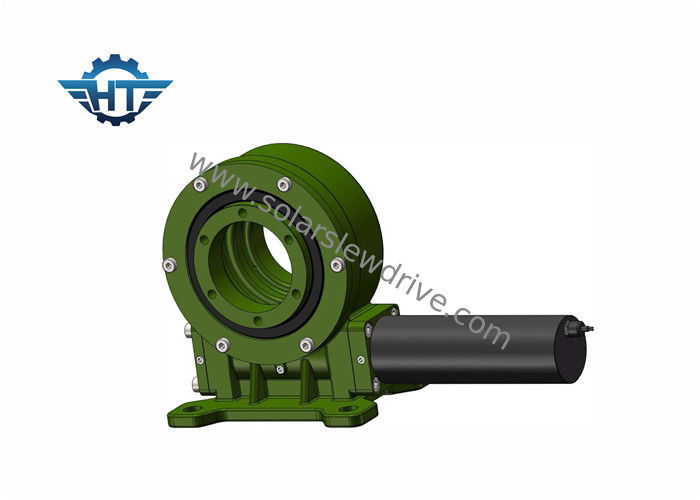

VE7 Vertical Single Worm Gear Slew Drive For Horizontal Single Axis Solar Tracking System 0

Advantages

1. High backholding torque to improve the solar tracking system's safety
2. 360 degree rotating range
3. Enveloping worm drive inside
4. Multi tooth contact to ensure high load
5. Self-locking function

Technical Data Of VE Slewing Drive


ModelRatioRated Output TorqueTilting TorqueAxial LoadRadial LoadHolding TorqueEfficiencyPrecisionSelf-lockingWeight
N.mN.mkNkNN.mdegreeYeskg
3"31:130015003.615700040%≤0.1Yes13kg
5"37:1637.550001627920040%≤0.1Yes18kg
7"57:11750700034581320040%≤0.1Yes28kg
8"51:122501120050802040040%≤0.1Yes35kg
9"61:1430016000601302720040%≤0.1Yes51kg
12"78:1560025000771904056040%≤0.1Yes61kg
14"85:16750480001102304420040%≤0.1Yes78 kg
17"102:19460670001423905304040%≤0.1Yes105 kg
21"125:116000890003376406500040%≤0.1Yes185 kg
25"150:1214501120004769508900040%≤0.1Yes244 kg


Customized Services
1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.


Tilting Moment Torque: This torque is the gravity load multiplied by distance between the position of load and the center of slewing bearing. If the actual torque is greater than the rated tilting moment torque, slewing drive will be overturned.
Radial load: The load vertical to the axis of slewing bearing
Axial load: The load parallel to the axis of slewing bearing
Holding torque: It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque, it is also seen as broken torque.
Self-locking: Only when there is load, the slewing drive is not able to reverse rotate and thus called self-locking.
