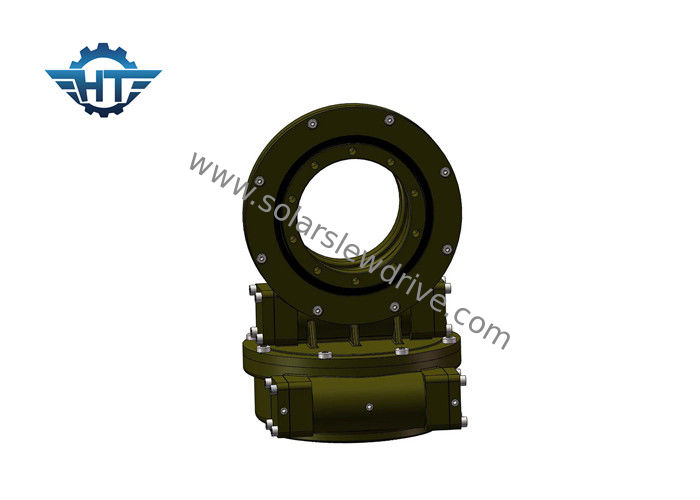

High Transmission Efficiency SDE7 Gear Slew Drive Gearbox, Dual Axis And Self Lock For Solar Trackers

High Transmission Efficiency SDE7 Gear Slew Drive Gearbox, Dual Axis And Self Lock For Solar Trackers

  • High Transmission Efficiency SDE7 Gear Slew Drive Gearbox, Dual Axis And Self Lock For Solar Trackers
  • High Transmission Efficiency SDE7 Gear Slew Drive Gearbox, Dual Axis And Self Lock For Solar Trackers
High Transmission Efficiency SDE7 Gear Slew Drive Gearbox, Dual Axis And Self Lock For Solar Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: SDE7"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: SDE7"
Gear Ratio: 57:1 Rated Output Torque: 2000 Nm
Holding Torque: 13500 Nm Tilting Torque: 13200 Nm
Efficiency: 40% Standard Color: RAL 9006
Axial Load: 34 KN Radial Load: 58 KN
High Light:

worm gear slew drive

,

slewing ring gear

High Transmission Efficiency SDE7 Gear Slew Drive Gearbox, Dual Axis And Self Lock For Solar Trackers


Introduction

Dual axis slewing drives are perfect for situations which need rotate both vertically and horizontally. Typical applications include dual axis solar trackers, satellite and radar dishes, machines which need moving 360 degrees at both directions.



Changzhou Hangtuo Mechanical Co.,ltd is a professional manufacturer and exporter of slewing bearing/slewing ring/slew circle,slewing drives/slew drive, which are mainly applied in port machinery, mining machinery, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems, satellite, antenna etc.



Features


1. High backholding torque to improve the solar tracking system's safety
2. Enveloping worm drive inside
3. Multi tooth contact to ensure high load
4. Self-locking function

Performance Chart of SDE Series



Model Ratio Rated Output Torque(N.m) Tilting Torque(N.m) Holding Torque(N.m) Axial Load(kN) Radial Load(kN) Efficiency Precision(°) Self-locking Weight(kg)
3" 31:1 600 1500 5800 10 15 40% ≤0.1 Yes 25
5" 37:1 800 6000 9200 16 27 40% ≤0.1 Yes 34
7" 57:1 2000 7500 13200 34 58 40% ≤0.1 Yes 56
9" 61:1 4300 16000 27200 60 130 40% ≤0.1 Yes 92
12" 78:1 5800 25000 40560 77 190 40% ≤0.1 Yes 160
14" 85:1 6750 48000 44200 110 230 40% ≤0.1 Yes 224
17" 102:1 9460 67000 53040 142 390 40% ≤0.1 Yes 320
21" 125:1 16000 89000 65000 337 640 40% ≤0.1 Yes 492
25" 150:1 21450 112000 89000 476 950 40% ≤0.1 Yes 705



Glossary of Key Parameters

Tilting Moment Torque: Torque is the load multiplied by distance between the position of load and the center of slewing bearing. If the qorque generated by load and distance is greater than the rated tilting moment torque, slewing drive will be overturned.
Radial load: Load vertical to the axis of slewing bearing
Axial load: Load parallel to the axis of slewing bearing
Holding torque:It is the reverse torque.When the drive is rotating reversely, and parts are not damaged,The maximum torque achieved is called holding torque.
Self-locking: Only when loaded, the slewing drive is not able to reverse rotate and thus called self-locking.

Customized Services


1. Special design based on different applications and projects
2. Different types of motors could be matched, such as hydraulic motors, stepper motors, electrical motors etc.
3. Different colors are available based on RAL code; our standard color is RAL 9006.
