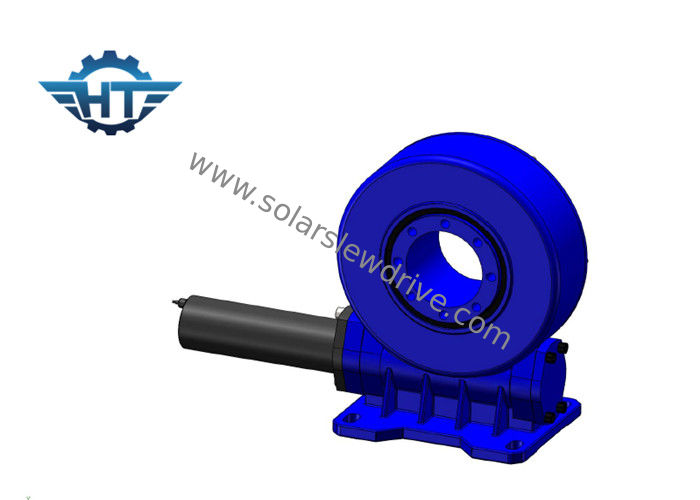

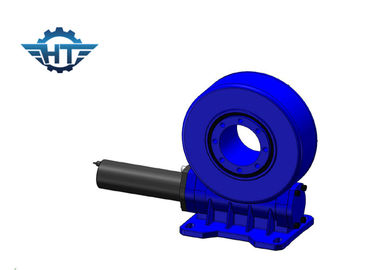

VE8 High Precison Vertical Single Solar Tracker Slew Drive With IP66 Enclosed Housing

VE8 High Precison Vertical Single Solar Tracker Slew Drive With IP66 Enclosed Housing

  • VE8 High Precison Vertical Single Solar Tracker Slew Drive With IP66 Enclosed Housing
  • VE8 High Precison Vertical Single Solar Tracker Slew Drive With IP66 Enclosed Housing
VE8 High Precison Vertical Single Solar Tracker Slew Drive With IP66 Enclosed Housing
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Model: 9 Inch Gear Ratio: 61:1
Efficiency: 40% Driver: Electric Motor/hydraulic Motor/servo Motor
Type: Vertical Mounted Application: Solar Tracking System
Precison: High OEM Service: Available
High Light:

slewing drive for solar tracking system

,

solar tracker drive



VE9 Vertical Single Solar Tracker Slew Drive With IP66 Enclosed Housing For Solar Trackers



Product Description



Slewing drives enable active systems to track the sun by adjusting to the Earth’s rotation relative to the sun. Solar applications include photovoltaic (PV) trackers, heliostats, solar troughs, concentrated photovoltaics (CPV), and stirling engines. Our slew drives can be mounted horizontally, vertically, and at tilted angles so an infinite number of orientations are possible.



VE8 High Precison Vertical Single Solar Tracker Slew Drive With IP66 Enclosed Housing 0



Slewing Drive have many types such as enclosed type, open housing type, vertical type, dual axis type, high precision type, worm drive type etc. slewing drive is based on the slewing bearing with strong tilting moment torque and static self-locking function. Much tooth contact surface is designed specially for driving high load.



Model: VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 4300 N.m
Tilting Moment Torque 16 K N.m Holding Torque 27 K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 37:1 Efficiency 40%



Recommended slewing drive



Enclosed housing slewing drive SE1 SE3 SE5 SE7 SE9 SE12 SE14 SE21
Precise enclosed housing slewing drive

ZSE1/

ZSDE1

ZSE3/

SDE3

ZSE5/

ZSDE5

ZSE7/

ZSDE7

ZSE9/

ZSDE9


Dual axis slewing drives SDE1 SDE3 SDE5 SDE7 SDE9 SDE12 SDE17 SDE21
Vertical enclosed slewing Drive VE3 VE5 VE6 VE7 VE8 VE9 VE12


Applications



solar trackers, wind turbines, satellite and radar dishes, truck cranes, man lifts, utility equipment, hydraulic equipment attachments, oil tool equipment, tire handlers, digger s, and automotive lifts.
