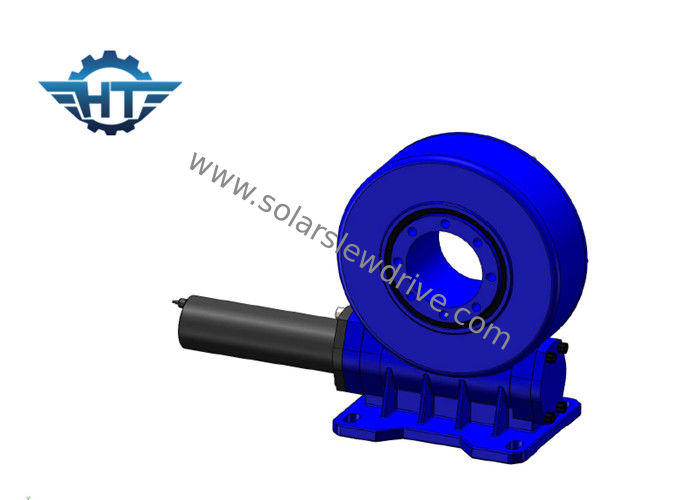

VE9 Small Slew Drive Flange Output , Single Axis Worm Gear Drive Applied In Solar Trackers

VE9 Small Slew Drive Flange Output , Single Axis Worm Gear Drive Applied In Solar Trackers

  • VE9 Small Slew Drive Flange Output , Single Axis Worm Gear Drive Applied In Solar Trackers
  • VE9 Small Slew Drive Flange Output , Single Axis Worm Gear Drive Applied In Solar Trackers
VE9 Small Slew Drive Flange Output , Single Axis Worm Gear Drive Applied In Solar Trackers
Product Details:
Place of Origin: China
Brand Name: HangTuo
Certification: CE, ISO9001
Model Number: VE9"
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: USD 280~504 / pc
Packaging Details: plywood box
Delivery Time: 15~45 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs per month
Contact Now
Detailed Product Description
Material: 50Mn, 42CrMo Model: VE9"
Gear Ratio: 61:1 Rated Output Torque: 4300 Nm
Holding Torque: 27200 Nm Tilting Torque: 16000 Nm
Efficiency: 40% Precise: Less Than 0.1 Degree
High Light:

worm drive gearbox

,

worm gear motor





VE9 Slew Drive With Flange Output, Single Axis Worm Gear Drive Applied In Solar Trackers



Description



A slew worm drive system is a compactly constructed unit which consists of a slewing ring, base plate and worm. This unit brings the advantages of a slewing ring and a worm into one unit.



It is suitable for applications which demand slow rotation with a continuous or cyclical movement capable of handling combined loads. The product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system to equipment.

Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in varying equipment such as mobile assembly platforms, satellite system, hydraulic loading cranes on haulage vehicles, small marine cranes, extendable rotating ladders, in wheel units of large marine portal transporters.



VE9 Small Slew Drive Flange Output , Single Axis Worm Gear Drive Applied In Solar Trackers 0



Technical Data



Model: VE9 Place of Origin Changzhou,China
Brand HANGTUO Type Enclosed
Material 42CrMo,50Mn Output Torque 4300 N.m
Tilting Moment Torque 16 K N.m Holding Torque 27 K N.m
Static Axial Rating 60 KN Static Radial Rating 130 KN
Dynamic Axial Rating 30 KN Dynamic Radial Rating 65 KN
Gear Ratio 37:1 Efficiency 40%





VE Slew Drive Technical Data



Model Ratio Rated Output Torque Tilting Torque Axial Load Radial Load Holding Torque Efficiency Precision Self-locking Weight
N.m N.m kN kN N.m degree Yes kg
3" 31:1 300 1500 3.6 15 7000 40% ≤0.1 Yes 13kg
5" 37:1 637.5 5000 16 27 9200 40% ≤0.1 Yes 18kg
7" 57:1 1750 7000 34 58 13200 40% ≤0.1 Yes 28kg
8" 51:1 2250 11200 50 80 20400 40% ≤0.1 Yes 35kg
9" 61:1 4300 16000 60 130 27200 40% ≤0.1 Yes 51kg
12" 78:1 5600 25000 77 190 40560 40% ≤0.1 Yes 61kg
14" 85:1 6750 48000 110 230 44200 40% ≤0.1 Yes 78 kg
17" 102:1 9460 67000 142 390 53040 40% ≤0.1 Yes 105 kg
21" 125:1 16000 89000 337 640 65000 40% ≤0.1 Yes 185 kg
25" 150:1 21450 112000 476 950 89000 40% ≤0.1 Yes 244 kg





Advantages



1. Rotation ±60°, hard stop/hard limit inside the drive incase of software controlling failure

2. Connection of a driving motor from the left or right side

3. During installation, it is not necessary to adjust the gearing clearance; this is already set by the producer before factory

4. Simple installation and low maintenance

5. Rational space utilization

6. The gear is self-locking; therefore a brake is not necessary

7. Easy and fluent method of starting and stopping
